New product
SKU: MV150BC

SHAPE Mini 150 Wh V-Mount battery USB-C Input/Output

Sale price$306.00 Regular price$360.00
Save 15%

Key Features :
  • Rated Voltage: 14.4V, 15A Continuous draw.
  • Capacity: 150 Wh – 10350 mAh.

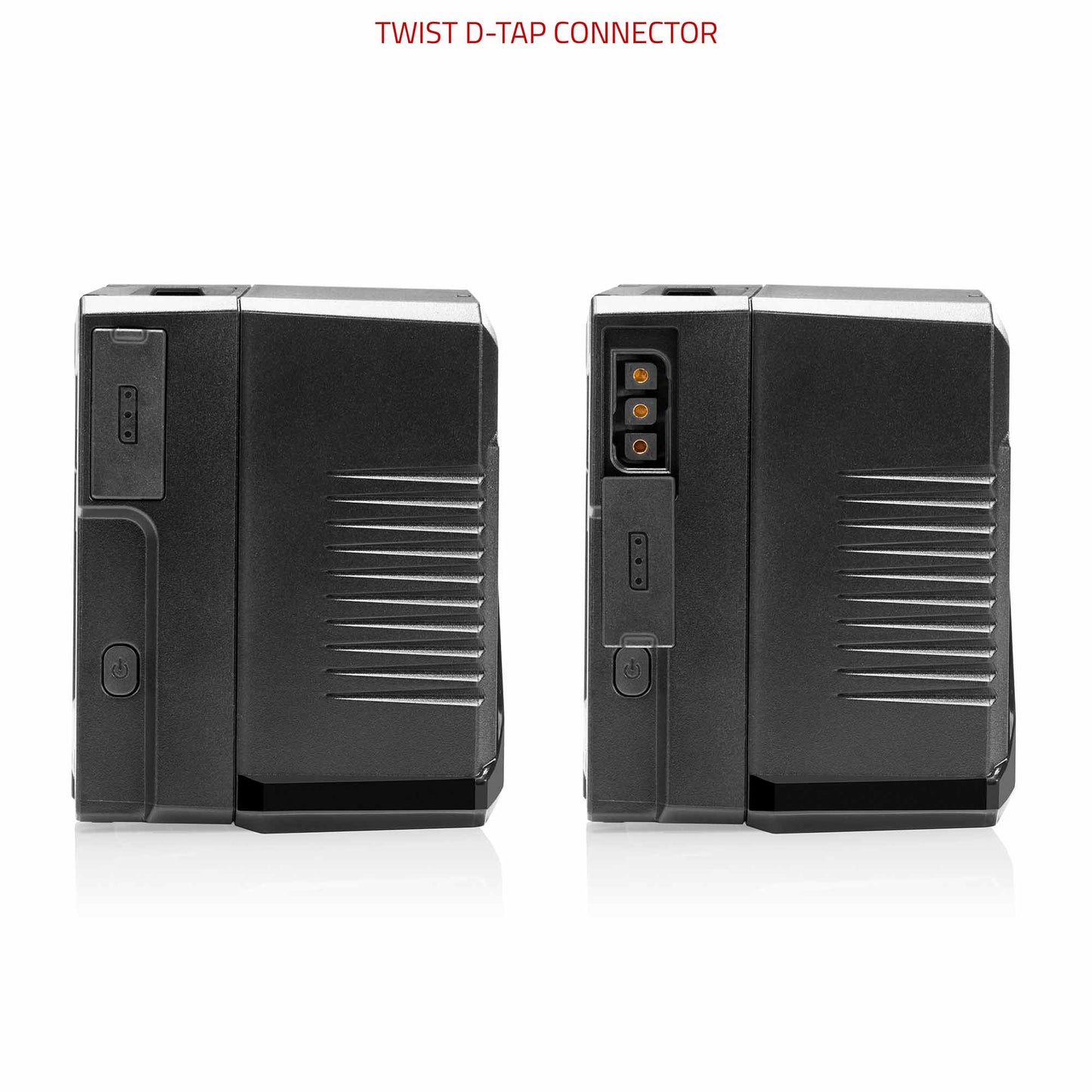

  • Twist D-tap output: 14.4V, 15A.

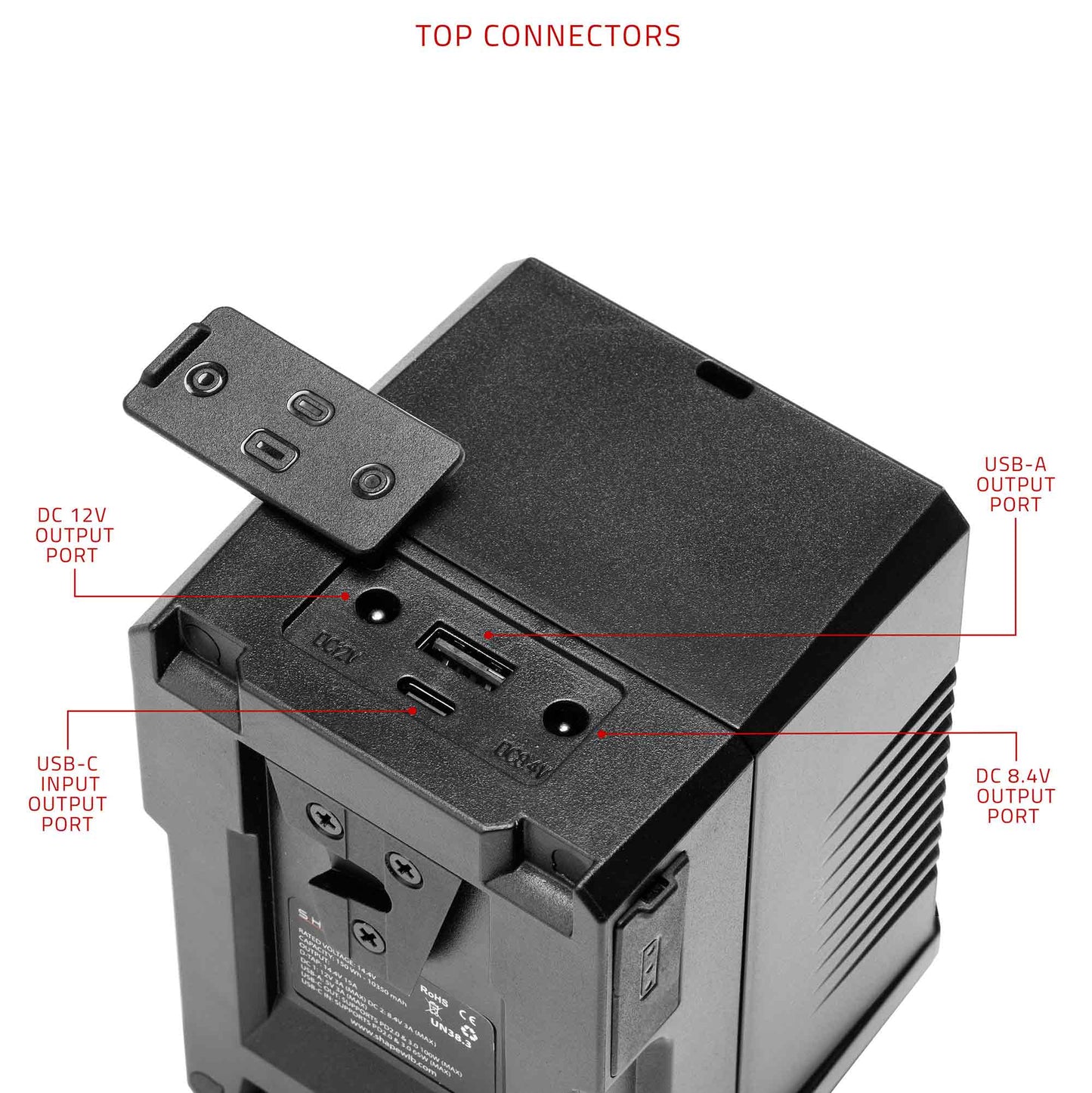

  • DC1: 12A, 3A (Max) DC2: 8.4V, 3A (Max).
  • USB-C Output: Supports PD2.0 & 3.0, 100W (Max).
  • USB-C Input: Supports PD2.0 & 3.0, 65W (Max).
  • USB-A Output: 5V, 3A (Max).

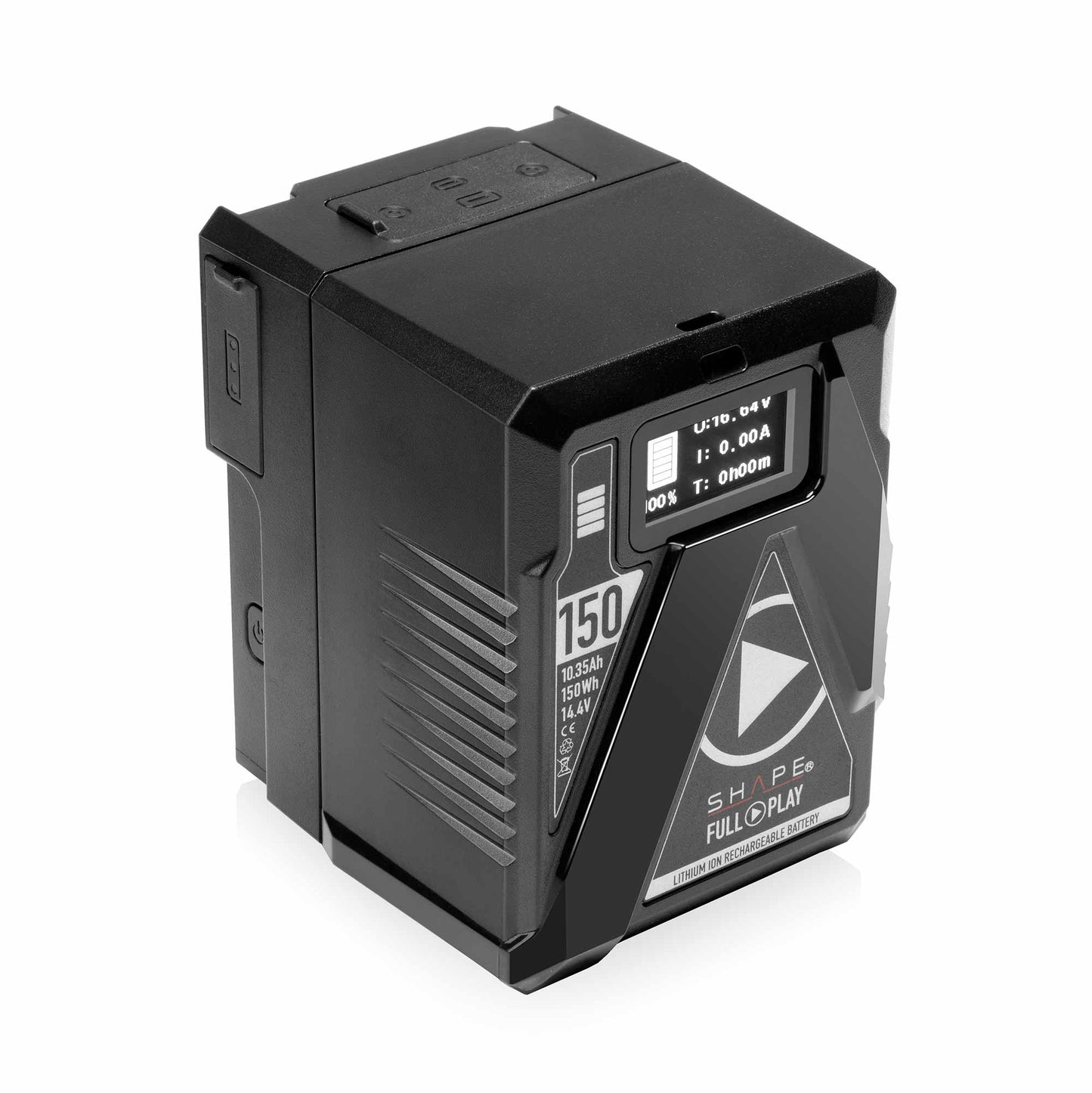

  • LCD Display: Voltage, Amperage, Time, Percentage and Battery level.

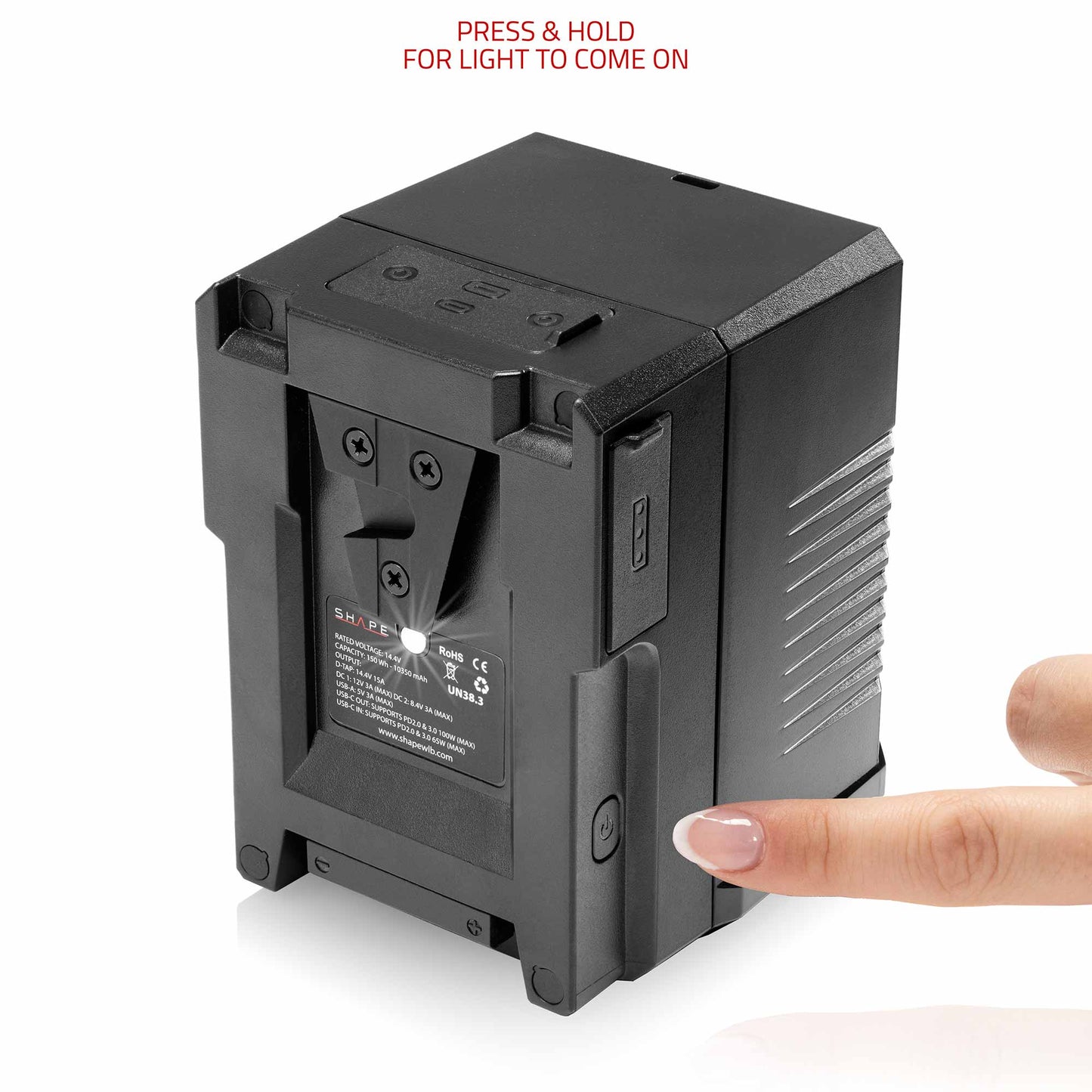

  • LED flash light at the back to operate in the dark.

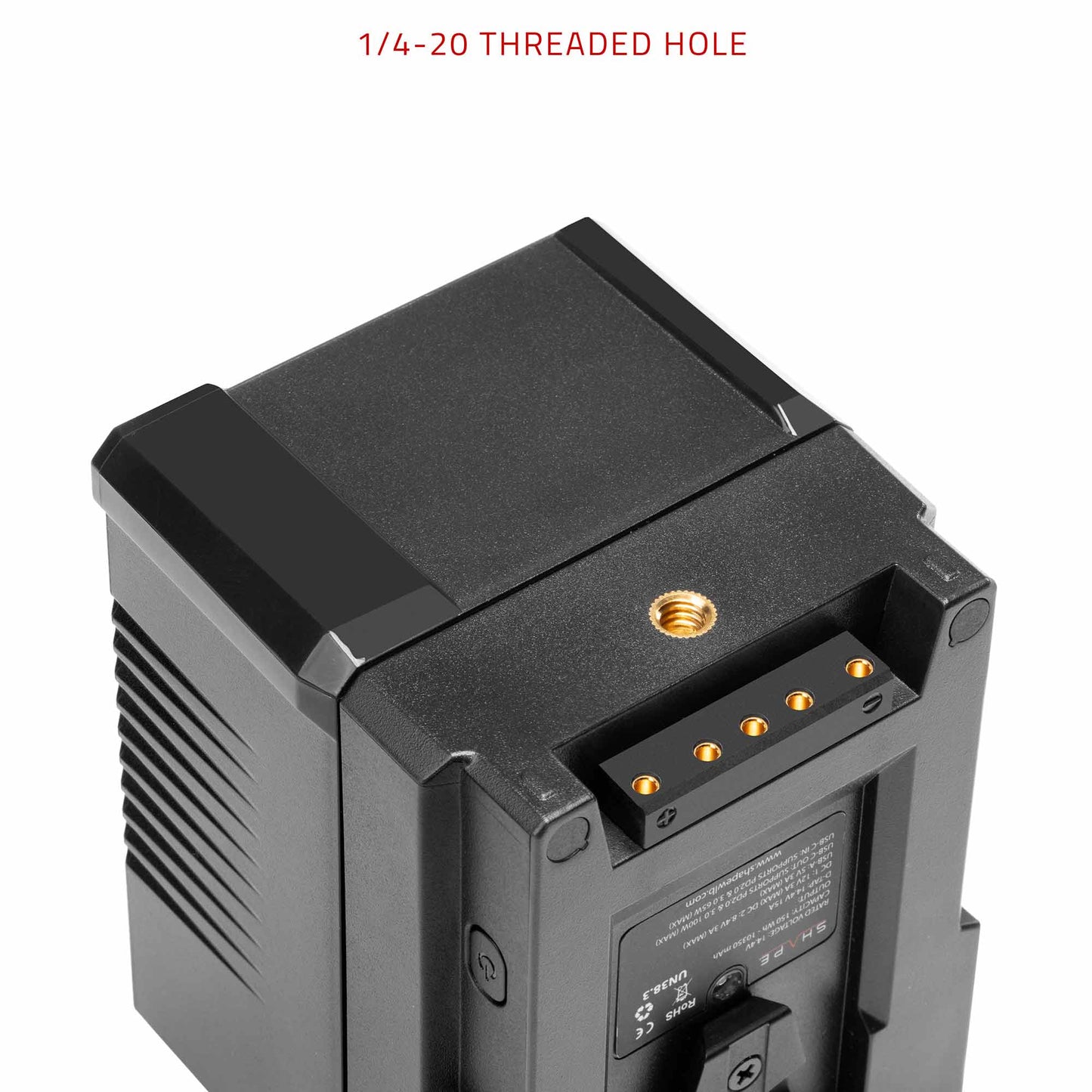

  • ¼-20 Threaded hole underneath the battery.
  • Compact Enclosure.
  • 2-year limited warranty against all manufacturer defects.

SKU:

MV150BC


All you need to know about this product

Product specifications

Description

SHAPE is adding a few more Full Play V-Mount Battery models to its family. They feature a newly redesigned compact form factor that easily fits on small or large cameras, monitors, lights, or other pro-video equipment. This brand new battery also offers a built-in USB & DC interface, enabling you to power or charge various electronic and mobile devices; The battery can also be charged via the USB-C input/output port. These outputs can be used simultaneously. Battery capacity can be quickly checked via LCD display at the front. The battery’s box-like design can be easily stacked for storage or packed away in a case for transport. The new SHAPE 150Wh Rechargeable Lithium-Ion V-Mount Battery outputs 14.4 V and supports up to a 15A continuous draw. It also provides a capacity of 10350 mAh and contains high-performance lithium-ion battery cells which are ideal for pro-video cameras, monitors, recorders, wireless transmitters, lighting and other accessories on your rig. This lightweight and small-sized battery enables you to carry a lighter load and free up valuable space besides working perfectly well with gimbals and aerial drones. Perfect for filmmakers on the go, this advanced and compact battery also features a brand new Twist D-Tap port for powering accessories during your shoot. The twist D-tap port prevents the user from plugging a D-tap cable backwards and inverting polarities. In addition, the battery also features a smart built-in short-circuitry protection as well as over-voltage and over-current protection to prevent it from overcharging. The battery is made from durable, shock resistant materials and the D-tap & BP ports made from PPS aircraft-grade materials. For quick status checks, the integrated LDC Display will indicate voltage, amperage, time, percentage and battery level. A ¼-20 threaded hole is included underneath the battery for easy attachment.

SKU
  • MV150BC
Dimensions
  • 4.25 x 3.13 x 3.44 in | 10.80 x 7.95 x 8.74 cm
Net Weight
  • 1.95 lbs | 0.88 Kg
Compatible with
  • Compatible with all the broadcast video cameras using a standard Gold-Mount battery plate or a standard V-Mount battery plate
  • Powers any standard or high-definition broadcast cameras, 4K digital cinema and 3D camera setups, DSLRs and handheld camcorders that accept a Gold-Mount/V-Mount battery
  • Battery can be charged with any standard Gold-Mount or V-Mount charger or D-Tap charger (Except Anton Bauer charger), including SHAPE Portable D-Tap Travel Battery Charger (DPTCH), SHAPE Intelligent 4-Channel Battery Charger (G4CHA/V4CHA) and SHAPE Intelligent Dual Battery Charger (G2PWC/V2PWC)
In the box
  • 1 x 150 Wh Lithium-Ion Battery

Battery Specification
