SKU: HSP36

SHAPE HOT SWAP V-MOUNT POWER BOX BATTERY 14.4V 36Wh

Sale price$336.75 Regular price$449.00
Save 25%

Key Features :

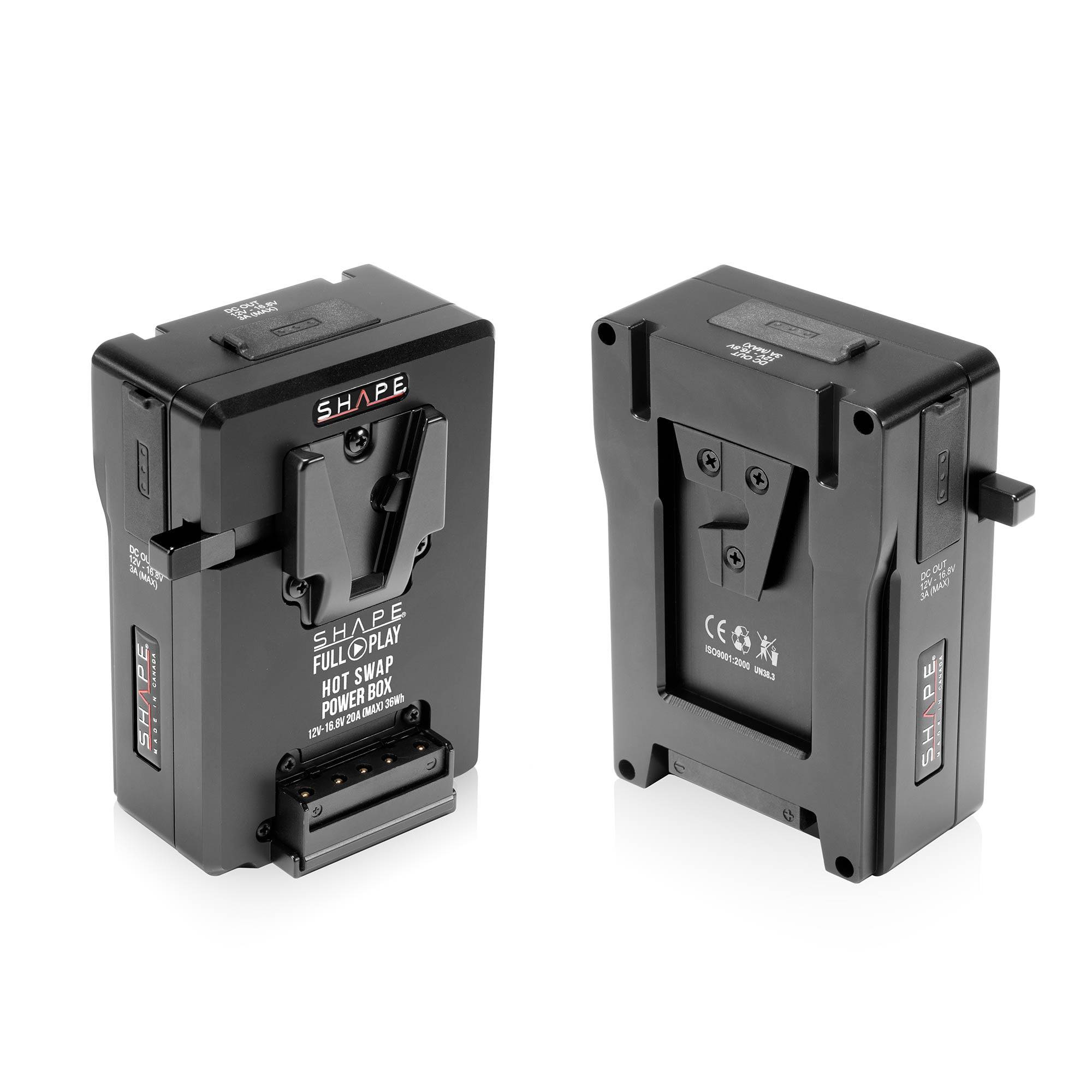

  • Hot Swap V-Mount to V-Mount Power Box Battery 14.4V 36Wh.
  • Hot Swap Function: Designed for uninterrupted power supply.
  • Rechargeable Li-Ion battery type.
  • Compatible with V-Mount Chargers to charge Hot Swap.
  • Hot Swap can be charged via D-Tap port.
  • Seamless Battery Switching.
  • High-Precision Monitoring.
  • Integrated Balancing Switch.

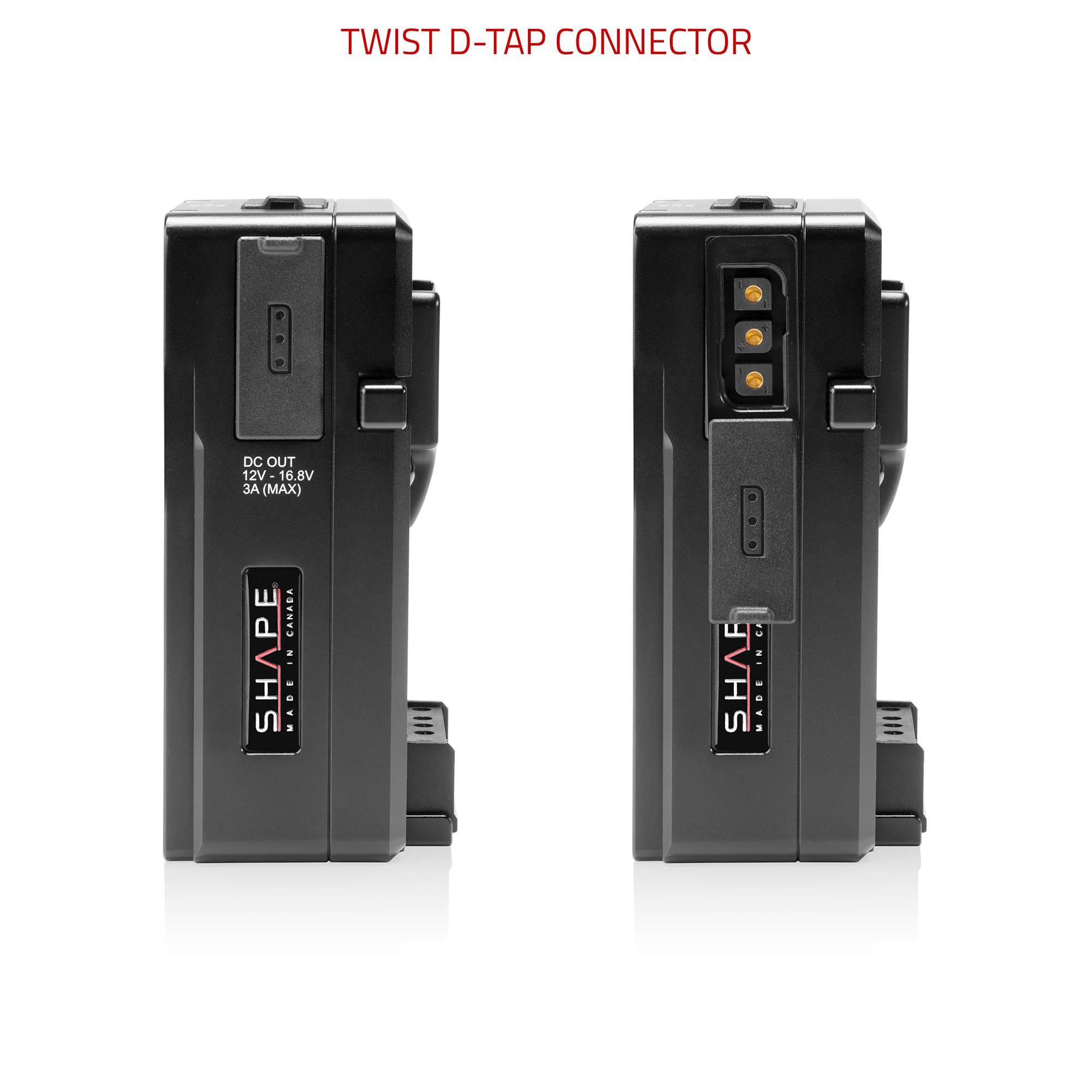

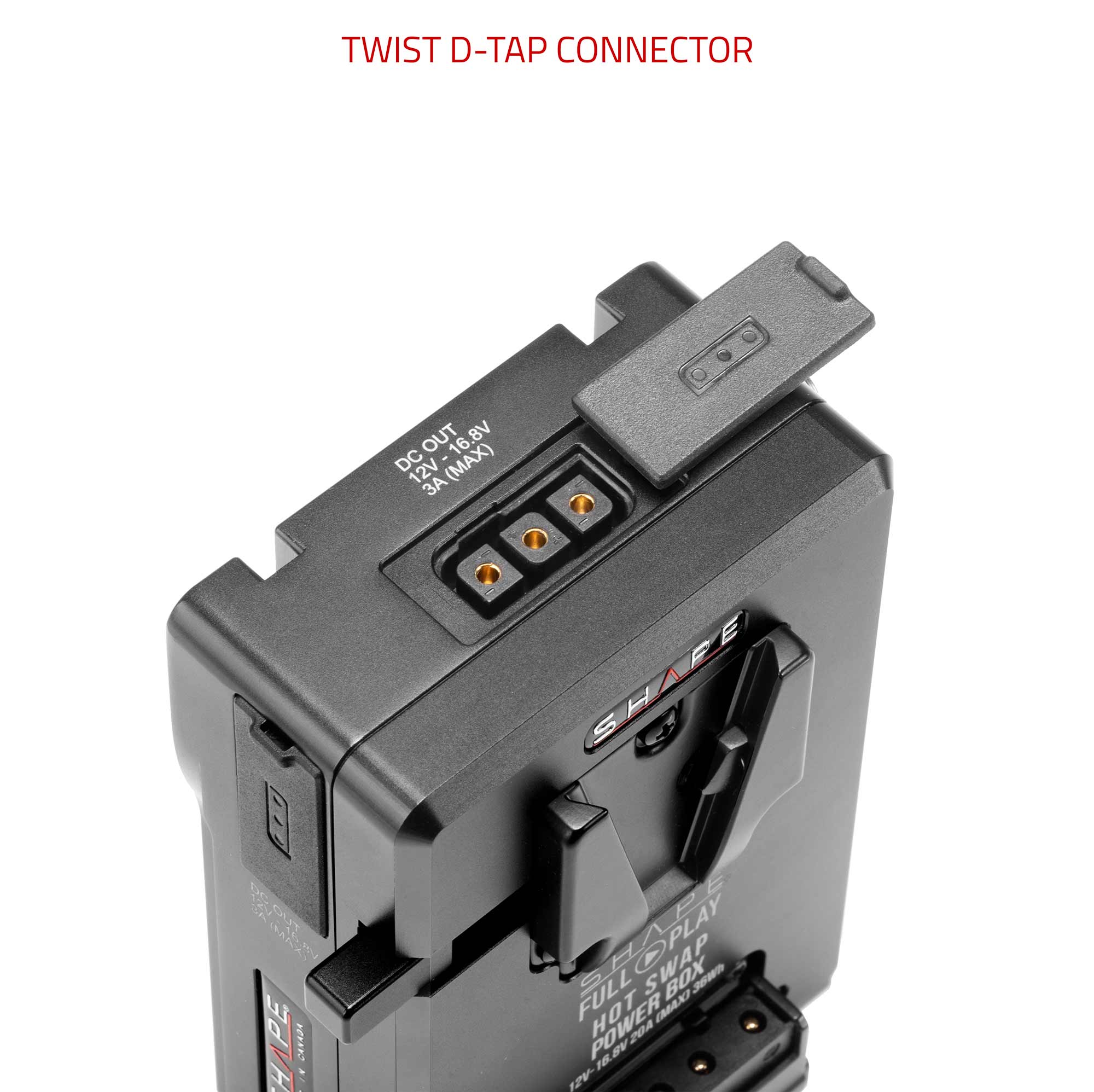

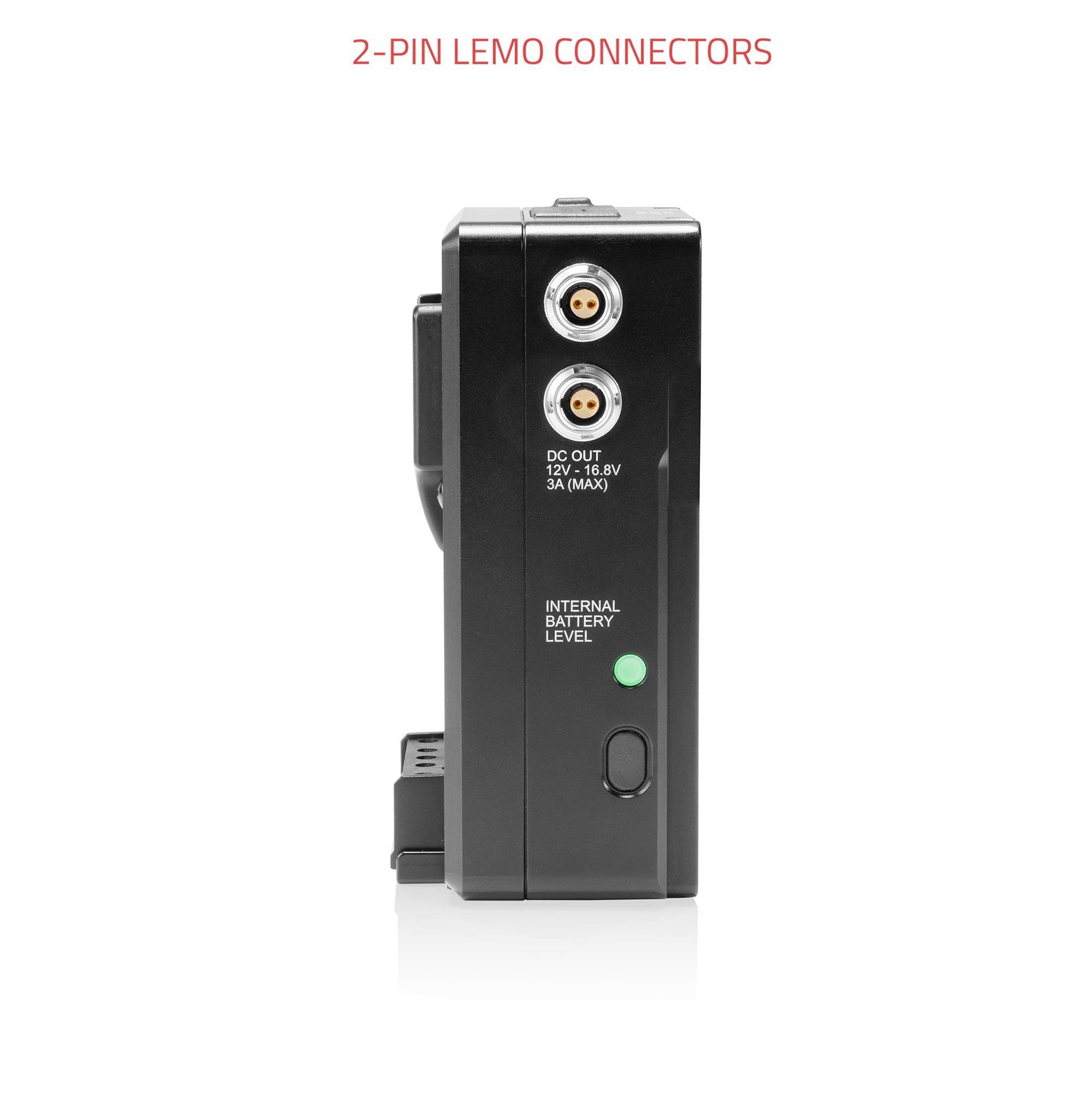

  • Includes two Twist D-Tap & two LEMO 2-pin ports.

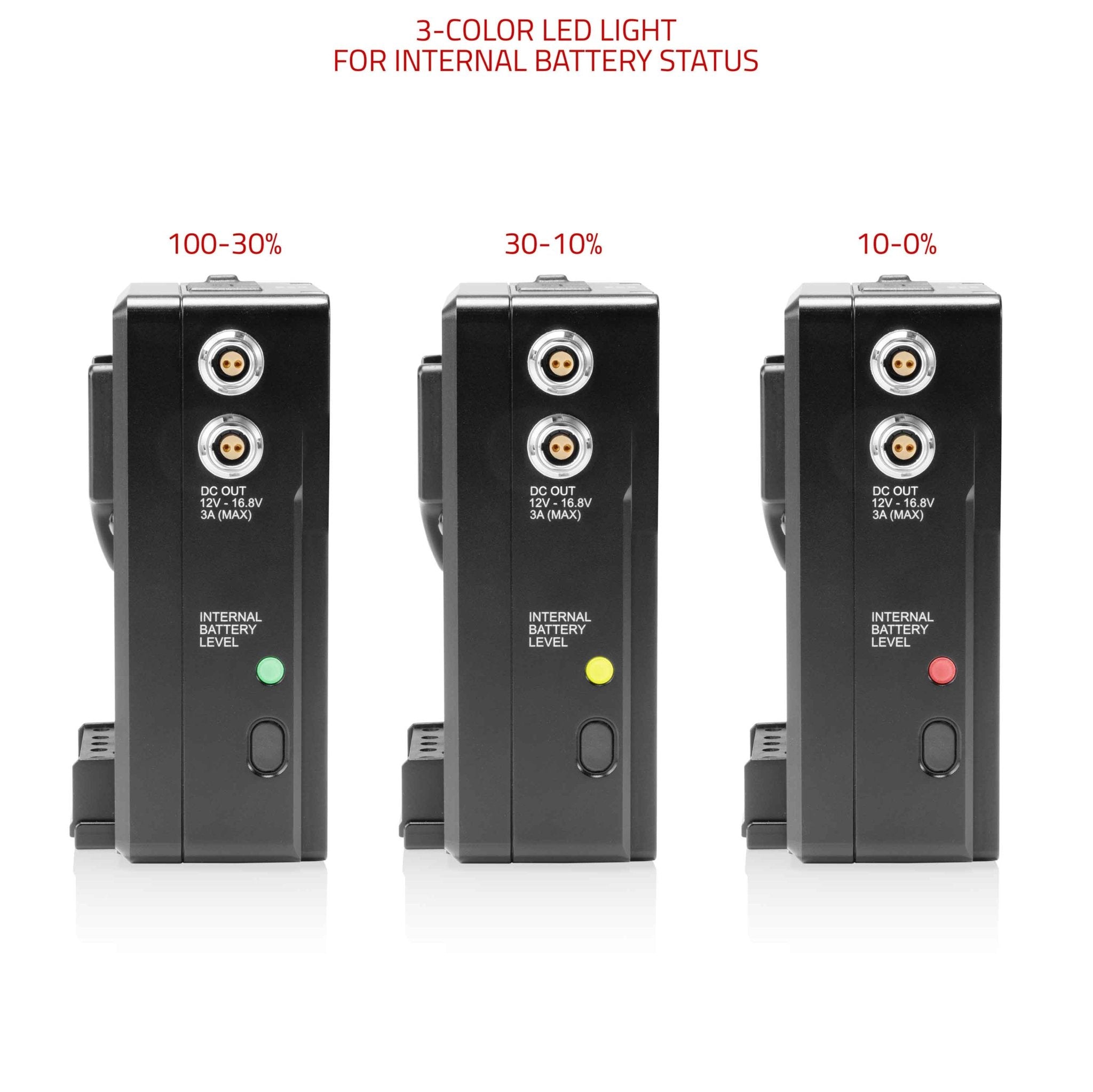

  • 3-Color LED lights: Red, Yellow & Green, indicating internal battery level.
  • 2-year limited warranty against all manufacturer defects.

SKU:

HSP36


All you need to know about this product

Product specifications

Description

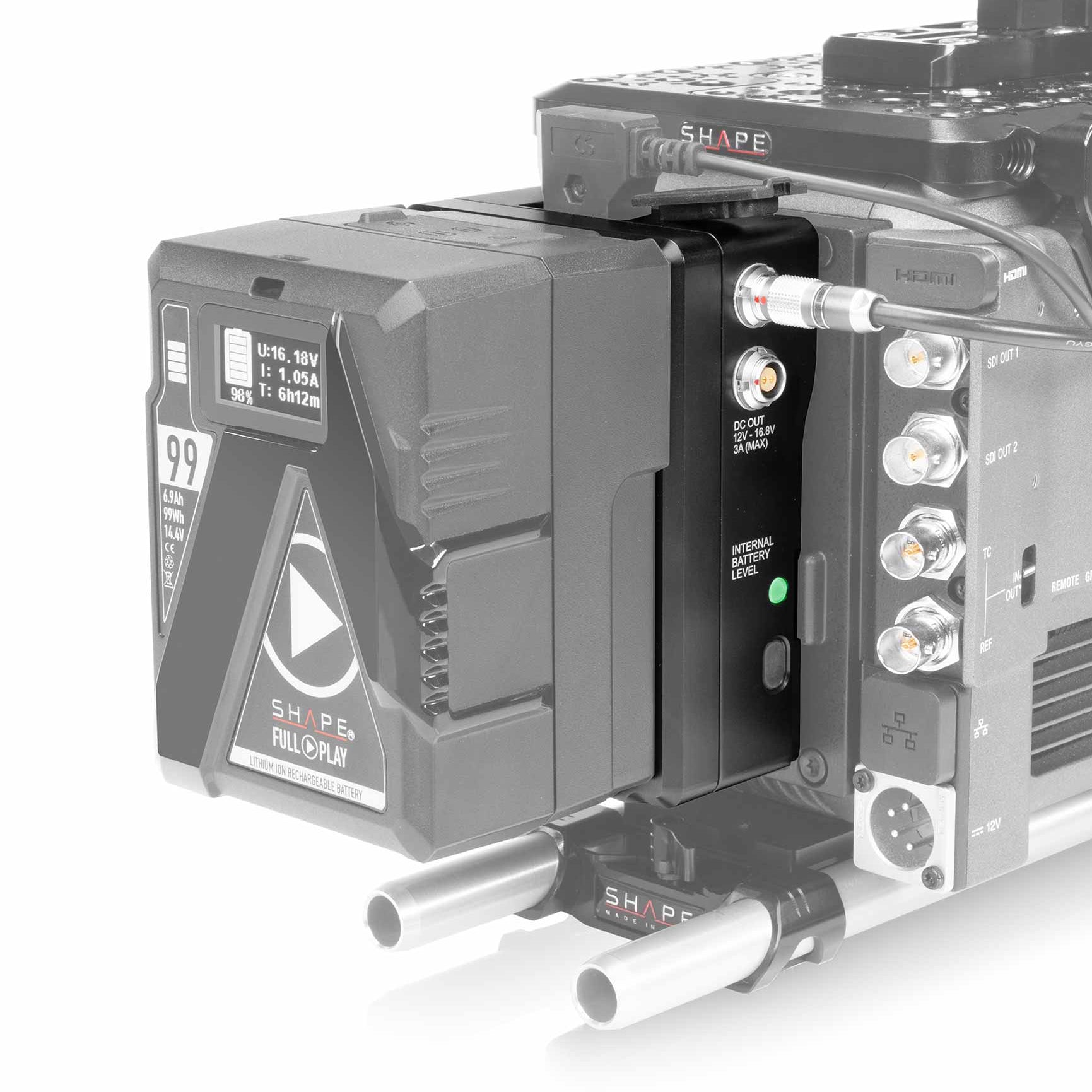

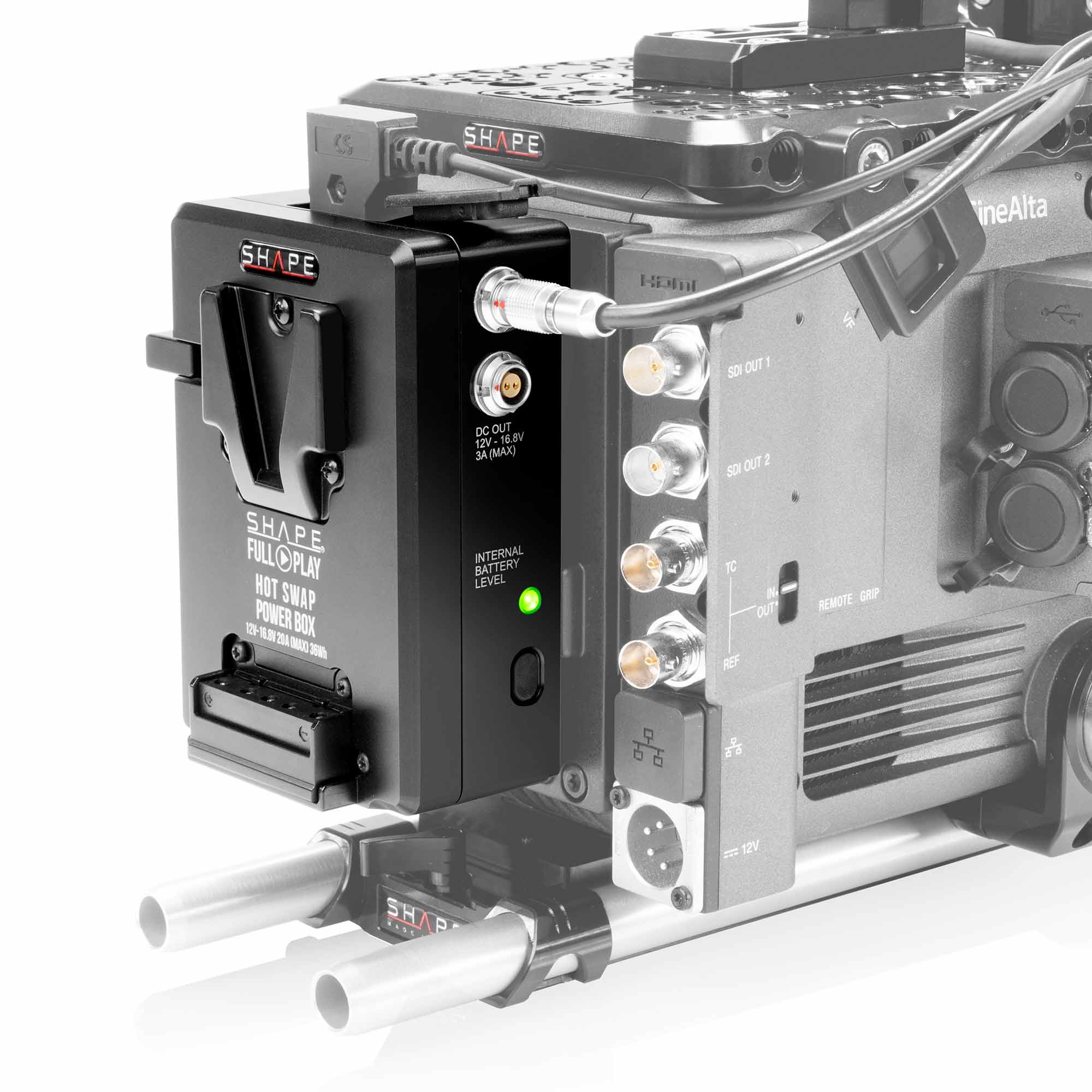

SHAPE is adding one more Full Play V-Mount Battery model to its family. The new Hot Swap V-Mount Power Box battery, designed for uninterrupted power supply. Its main goal is to maintain power to the camera, during a battery switch. It will prioritize external batteries for power supply while simultaneously charging the internal battery. Featuring high-precision monitoring, it includes a built-in high-precision voltage detection circuits and delay circuits to monitor voltage, current and temperature, ensuring the safety of the battery pack and extending its lifespan. To ensure the consistency of its cell voltages, SHAPE designed an integrated balancing switch. To enhance its system safety, a low temperature charging protection and under-voltage load lock functions are included. This Hot Swap Power Box includes two Twist D-tap and two LEMO 2-pin ports to provide power to additional accessories. To see its internal battery level, a 3-color LED light system will show you a red, yellow or green light. SHAPE’s Hot Swap Power Box has a 2-year limited warranty against all manufacturer defects. SPECIFICATIONS: Rated Capacity: 2500 mAh, 36Wh Nominal Voltage: 14.4V Voltage Range: 12-16.8V Charging Voltage: 16.8V Charging Current: 3.5A (Max) Discharge Current: 20A (Max)(Total) Main BP Output: 12-16.8V, 20A (Max) Twist D-tap Output: 12-16.8V, 3A (Max) LEMO 2-pin Output: 12-16.8V, 3A (Max) Operating Temperature: -40°~50°C Storage Temperature: -20°C~45°C Operating Humidity: 90-95% (Max) Storage Humidity: <70% Dimensions: 4.4 x 3.4 x 2 in / 112 x 87 x 51 mm Weight: 1.2 lbs. / 550g

SKU
  • HSP36
Dimensions
  • 4.4 x 3.4 x 2 in | 112 x 87 x 51 mm
Material

Anodized Aluminum

Net Weight
  • 1.2 lbs. / 550g
In the box
  • 1 x SHAPE HOT SWAP V-MOUNT POWER BOX BATTERY 14.4V 36Wh
  • 1 x Instruction Manual

Battery Specification
