SHAPE ARRI Dovetail Shoulder Mount

SKU: DOVSM
Crafted in Canada
Lifetime Warranty (solely on CNC machined parts)

Key Features

Lightweight ARRI-style Dovetail shoulder mount.
ARRI Rosettes at the front for handle attachment
Adjustable non-slip shoulder pad
Spring loaded stoppers at the front and back.
Compatible with standard ARRI style bridge plates. (15mm LWS, 15mm studio and 19mm Studio).
12.5” long with 10.5” of top bridge plate travel.
Includes a pair of Compact Quick Handle ARRI Rosette Black.
CNC machined aluminum.

CAD$432.22

Order by 11 am to ship today
Free Shipping to Canada & US on orders over $99
(Surcharges apply for batteries and oversized bags.)
All you need to know about the

DOVSM

Related products

Description

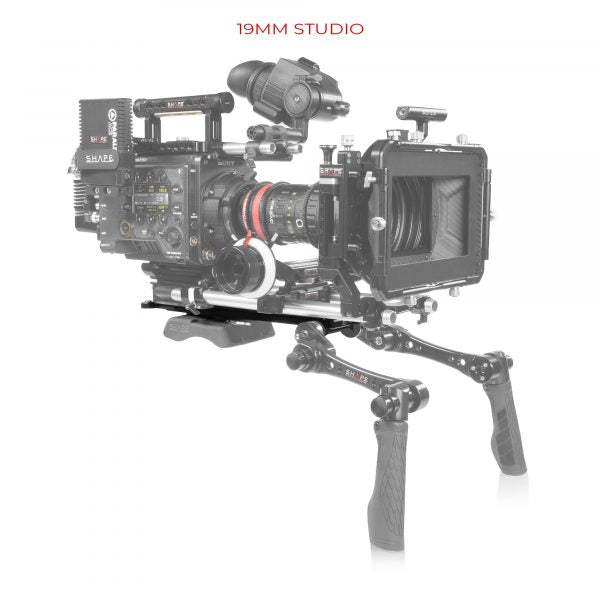

The SHAPE ARRI Dovetail shoulder mount is our newly designed unit meant to be combined with ARRI style bridge plates in all 3 industry standards, (15mm LWS, 15mm Studio & 19mm Studio). The bridge plate can be adjusted front to back, depending on the weight distribution of the camera, and can be locked in the desired position with the side lever. The same can be done with the padding itself, underneath the dovetail section. You can position the padding and lock it in place with its side lever. Spring loaded stoppers are included at the front and back of the shoulder mount to prevent the top bridge plate from sliding out. To release entirely the bridge plate, simply push down on the button and the bridge plate is free. Made of sturdy CNC aluminum, the dovetail section is 12 ½ inch long and allows a 10 ½ inches of travel for the bridge plate. It provides stability and can be combined with a variety of our handles given the two ARRI rosettes at the front part of the shoulder mount.

Additional information

Weight 2.19 lbs
Dimensions 14 × 5 × 4 in

Reviews

There are no reviews yet.

Be the first to review “SHAPE ARRI Dovetail Shoulder Mount”

Your email address will not be published.

Specifications

Weight:
1.80 lbs
0.82 kg
Dimensions:
12.8 x
4.5 x
2.5 in
32.51 x
11.43 x
6.35 cm
UPC:
629266103135
