SHAPE ARRI Dovetail Shoulder Mount With Hand15 Handles
SKU: HSMDV
Sale!
Crafted in Canada
Lifetime Warranty (solely on CNC machined parts)
Key Features
Lightweight ARRI-style Dovetail shoulder mount.
ARRI Rosettes for handle attachment
Adjustable non-slip shoulder pad
Spring loaded stoppers at the front and back.
Compatible with standard ARRI style bridge plates. (15mm LWS, 15mm Studio and 19mm Studio).
12.5” long with 10.5” of top bridge plate travel.

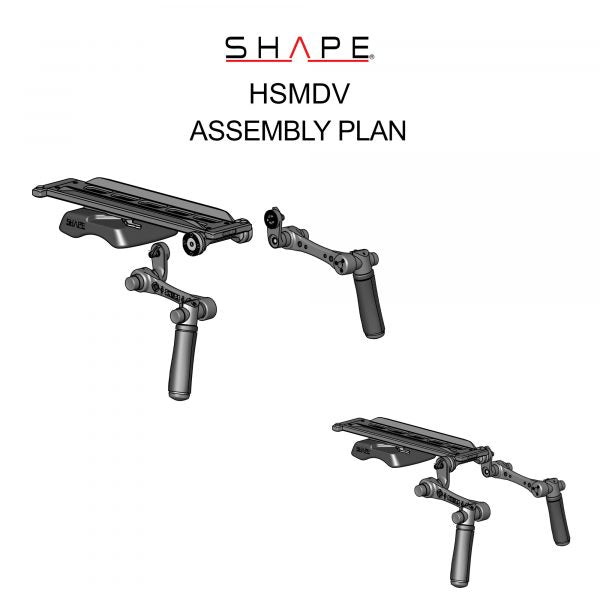

Includes a pair of Compact Quick Handle ARRI Rosette with Black Push Buttons, Patented Push Button Technology.
Push, adjust, release, and then it’s locked.
CNC machined aluminum.
The SHAPE ARRI Dovetail shoulder mount is compatible with ARRI style bridge plates in all 3 industry standards - 15mm LWS, 15mm Studio, and 19mm Studio. The bridge plate slides front to back and locks in the desired position with the side lever. The same can be done with the pad underneath the dovetail section. Spring loaded stoppers are included at the front and back of the shoulder mount to prevent the top bridge plate from sliding.
To release the bridge plate, simply push the button. The dovetail section is 12-½ inches long and allows 10-½ inches of travel. The SHAPE ARRI Dovetail shoulder mount provides stability and is compatible with a variety of our handles.
One pair of ARRI Rosette-compatible handgrips that can be attached to cameras or camera support hardware. Each arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing for nearly endless configurations. The arms mate with ARRI Rosettes using spring-loaded locking levers. Each arm has two 1/4-20 and two 3/8-16 threaded holes with locking attachment stoppers for additional mounting options. SHAPE’s Push-button handle has been adopted by many professionals in the industry for its ease of use and strong, positive lock. We developed this patented technology to give users quick and easy adjustment of the rig. By simply pressing the button, the hub unlocks to allow 360-degree free rotation. Release, and the hub locks together; push, adjust, release. The Push-button system on the handle joint provides quick articulation near the rosette, while a second push-button joint allows you to rotate and precisely position the rubber handgrips.
Additional information
Weight
4.3 lbs
Dimensions
14 × 5 × 4 in
Reviews
There are no reviews yet.
Be the first to review “SHAPE ARRI Dovetail Shoulder Mount With Hand15 Handles” Cancel reply
Specifications
Weight:
4.00 lbs
1.81 kg
Dimensions:
18.30 x
15.50 x
7.5 in
46.48 x
39.37 x
19.05 cm
UPC:
629266103142
Lifetime Manufacturer's Warranty
All SHAPE products and accessories are covered by a manufacturer’s warranty solely on CNC machined parts.
All calls for service or repairs should be referred and sent directly to SHAPE. For an out-of-box failure, you may contact SHAPE by email at [email protected] or call 1-888-968-9810 (Canada/U.S.) or 1-450-447-4444.
SHAPE® Brand Warranty
All SHAPE® brand products have a lifetime warranty unless otherwise stated. Please email us at [email protected] or call 1-888-968-9810 (Canada/U.S.) or 1-450-447-4444 for repairs or exchanges on your SHAPE® brand products.
The SHAPE ARRI Dovetail shoulder mount is compatible with ARRI style bridge plates in all 3 industry standards - 15mm LWS, 15mm Studio, and 19mm Studio. The bridge plate slides front to back and locks in the desired position with the side lever. The same can be done with the pad underneath the dovetail section. Spring loaded stoppers are included at the front and back of the shoulder mount to prevent the top bridge plate from sliding.
To release the bridge plate, simply push the button. The dovetail section is 12-½ inches long and allows 10-½ inches of travel. The SHAPE ARRI Dovetail shoulder mount provides stability and is compatible with a variety of our handles.
One pair of ARRI Rosette-compatible handgrips that can be attached to cameras or camera support hardware. Each arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing for nearly endless configurations. The arms mate with ARRI Rosettes using spring-loaded locking levers. Each arm has two 1/4-20 and two 3/8-16 threaded holes with locking attachment stoppers for additional mounting options. SHAPE’s Push-button handle has been adopted by many professionals in the industry for its ease of use and strong, positive lock. We developed this patented technology to give users quick and easy adjustment of the rig. By simply pressing the button, the hub unlocks to allow 360-degree free rotation. Release, and the hub locks together; push, adjust, release. The Push-button system on the handle joint provides quick articulation near the rosette, while a second push-button joint allows you to rotate and precisely position the rubber handgrips.
