Revolt BP10 - VCT universal baseplate

CAD$849.00

Free Shipping to Canada & US on orders over $99
Home > Camera Accessories > Shoulder & Sliding Baseplate > Universal Baseplate > Revolt BP10 – VCT universal baseplate

Revolt BP10 - VCT universal baseplate

SKU: BP10
Crafted in Canada
Lifetime Warranty

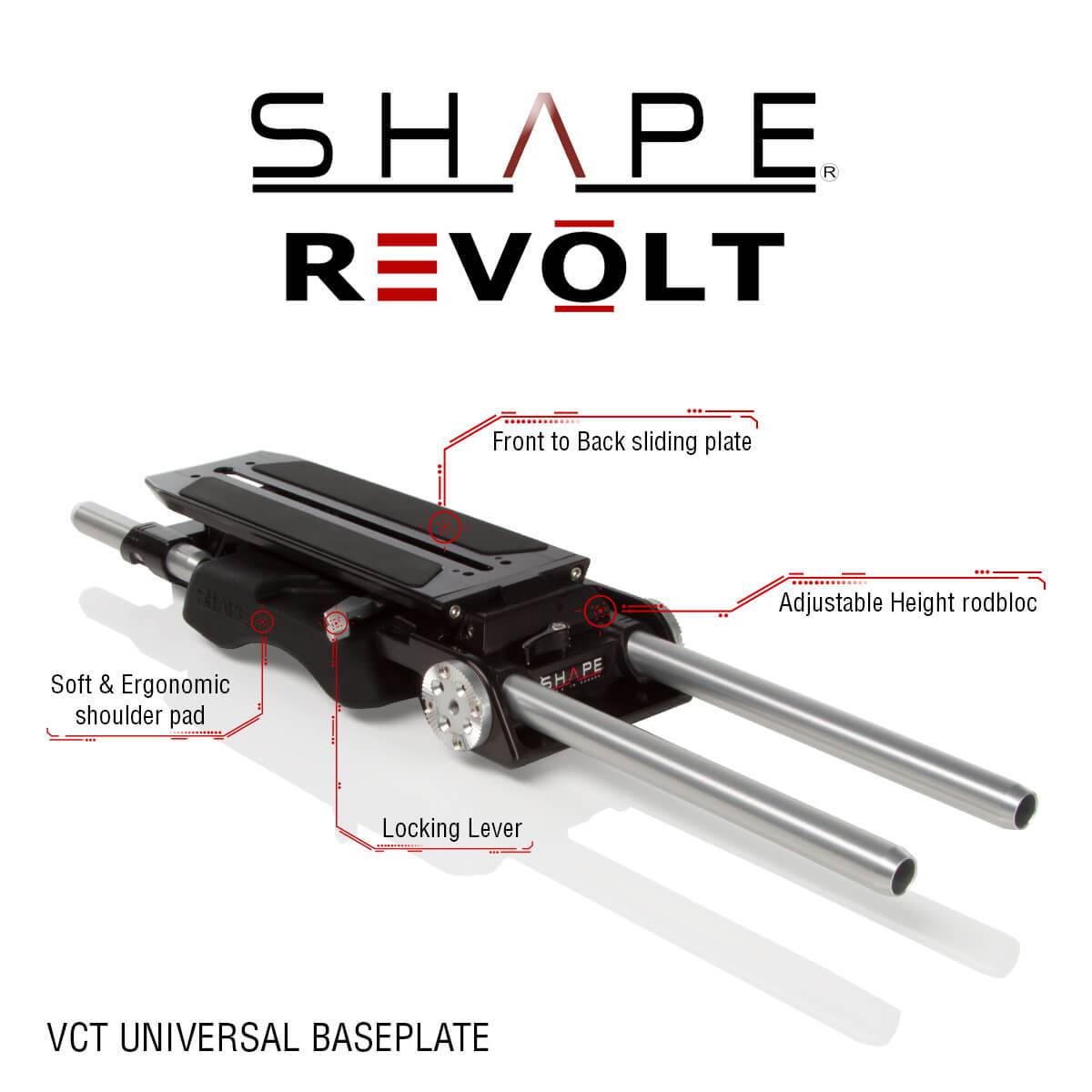

Key Features

Front to Back sliding plate for weight distribution
Match your camera’s optical center
Moveable shoulder pad made of slip-free material
Made of CNC Machined Aluminum
Protective rubber pads to protect your camera
Front and rear 15 mm rod bloc system with safety ratchet knob
Come with 2 pairs of 15 mm rods (8”, 4”)
Designed with 2 standard Arri rosettes for handles mount
Sophisticated tool box to store your extra screws and Allen key
Quick release adapter plate for VCT tripod plate mount

CAD$849.00

Order by 11 am to ship today
Free Shipping to Canada & US on orders over $99
All you need to know about the

BP10

Related products

Description

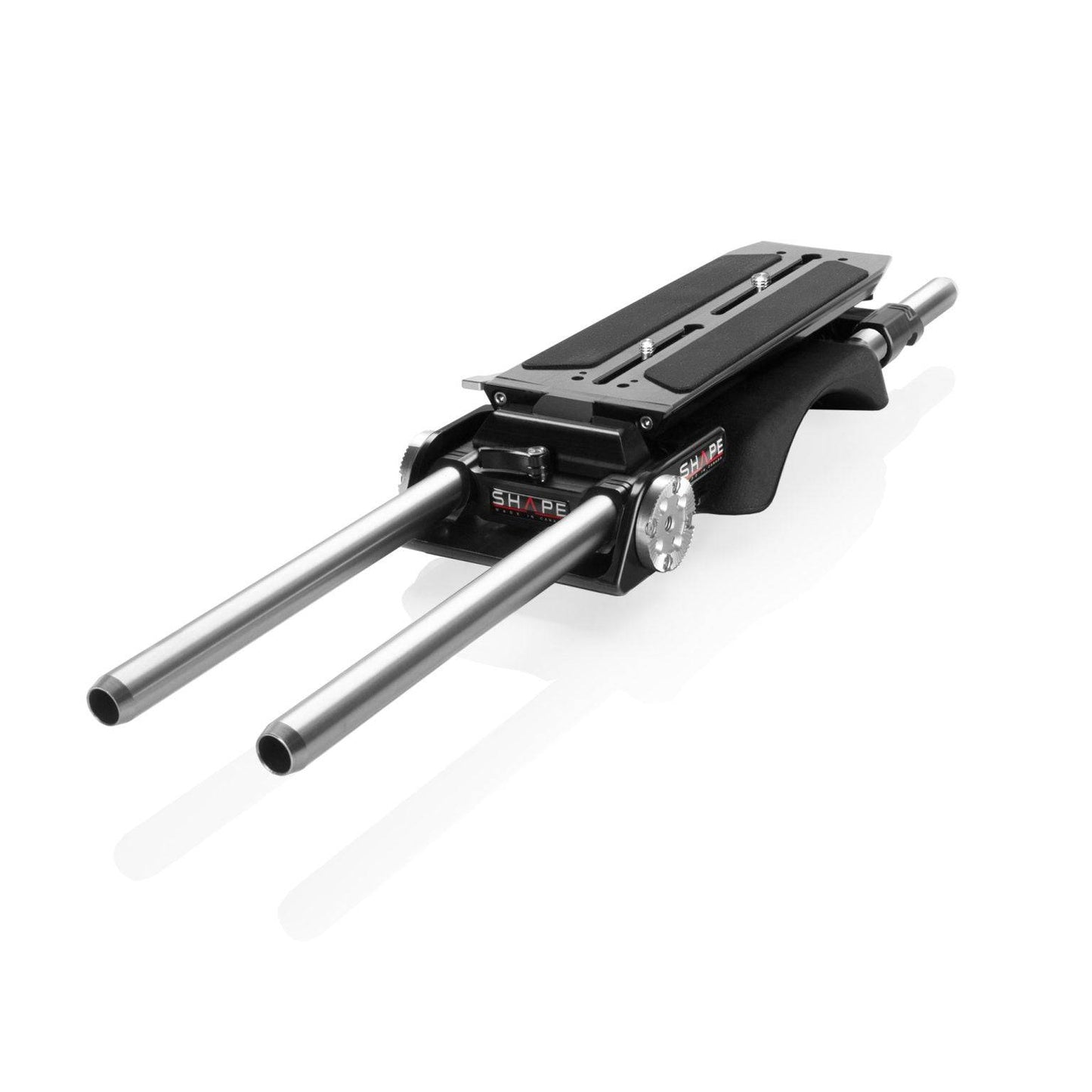

The REVOLT VCT Universal Baseplate (BP10) offers a unique design, created for both amateur and professional filmmakers seeking camera supports & stabilizers of high-quality. It features a front to back sliding plate allowing quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution. It is designed with 2 standard Arri rosettes for handles mount and there is a standard quick release adapter plate compatible with most VCT tripod plate. There is also a protective rubber pads on top of the plate to protect your camera.

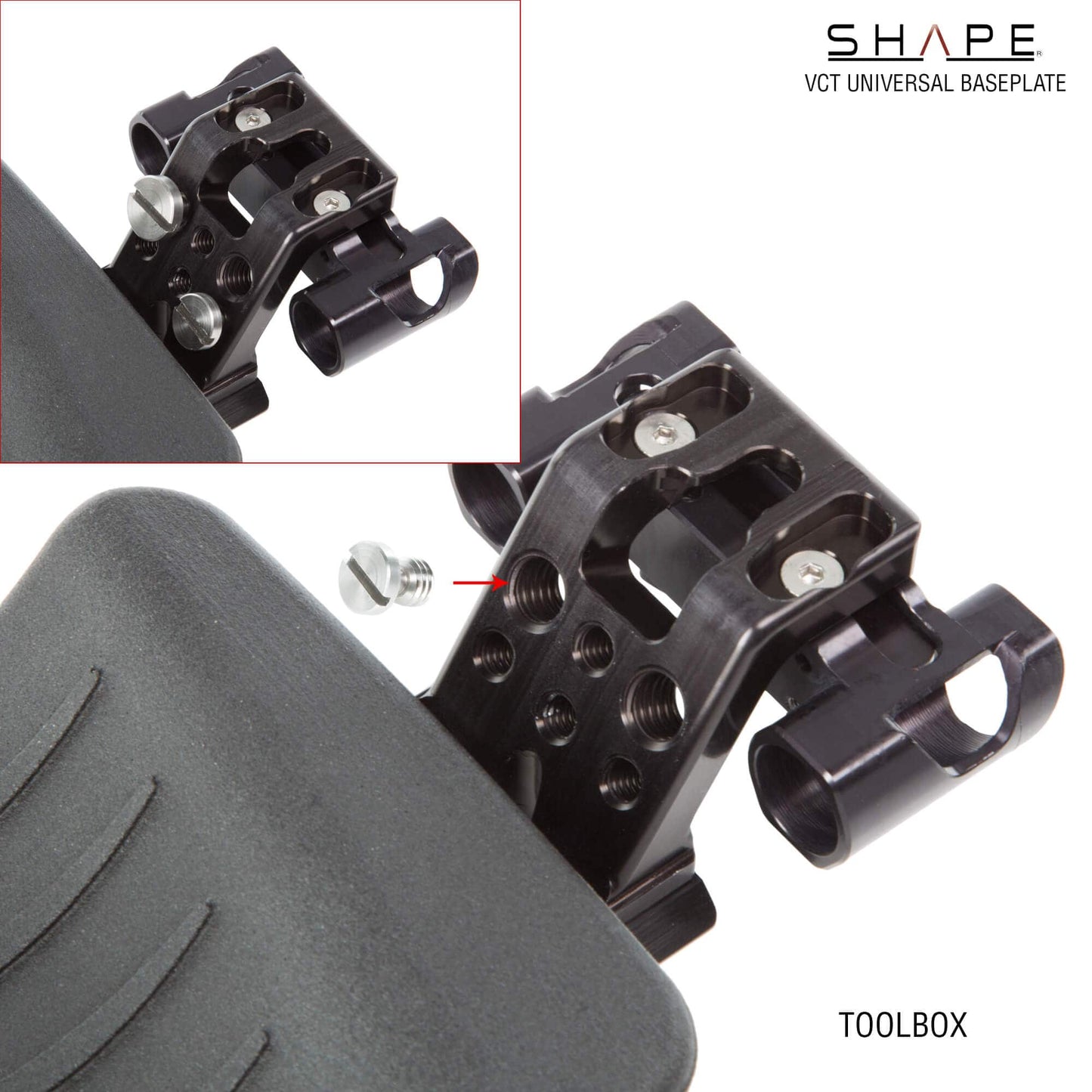

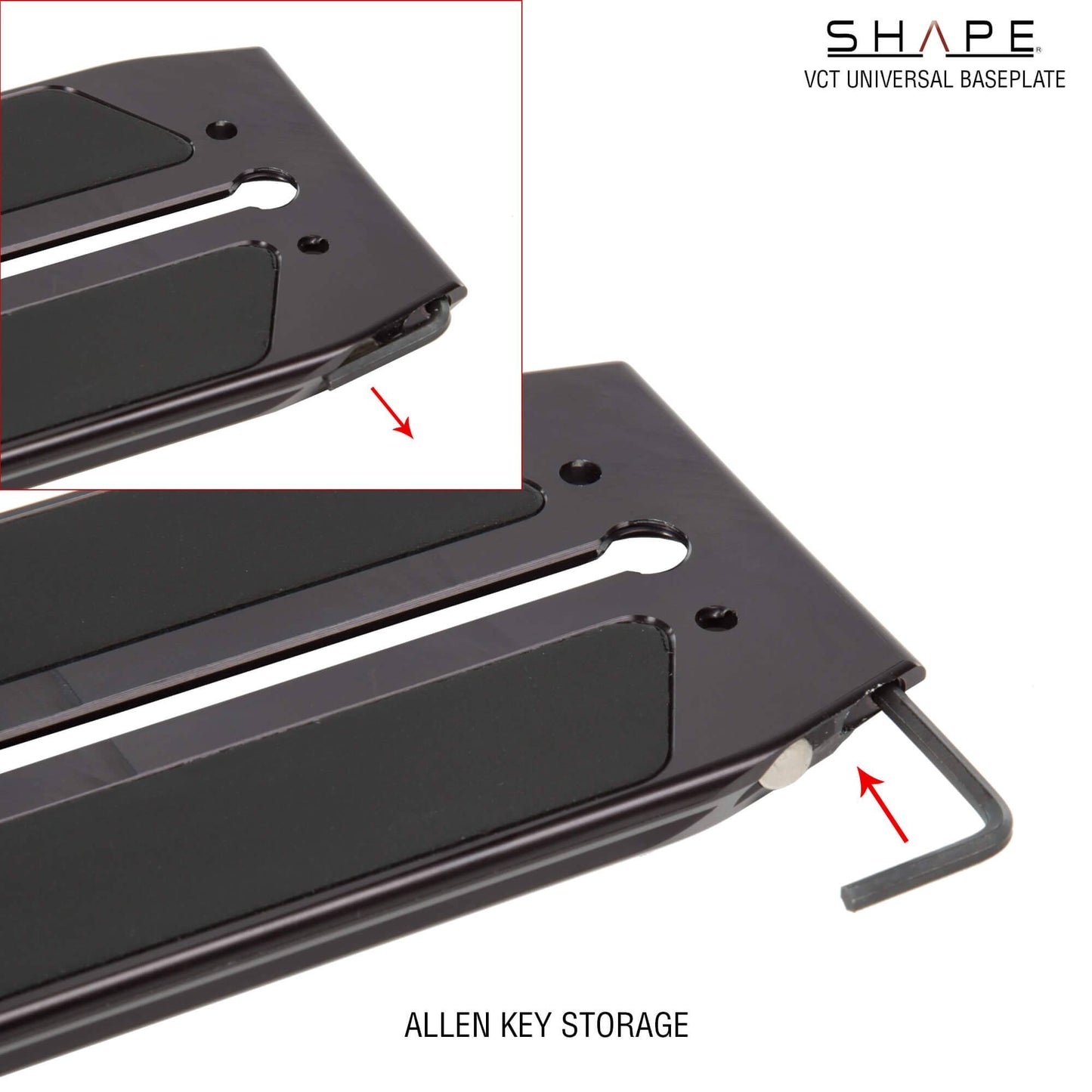

Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. It comes with 2 pairs of 15 mm rods (8”and 4”) made of reliable aluminum coated with a clear finish. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

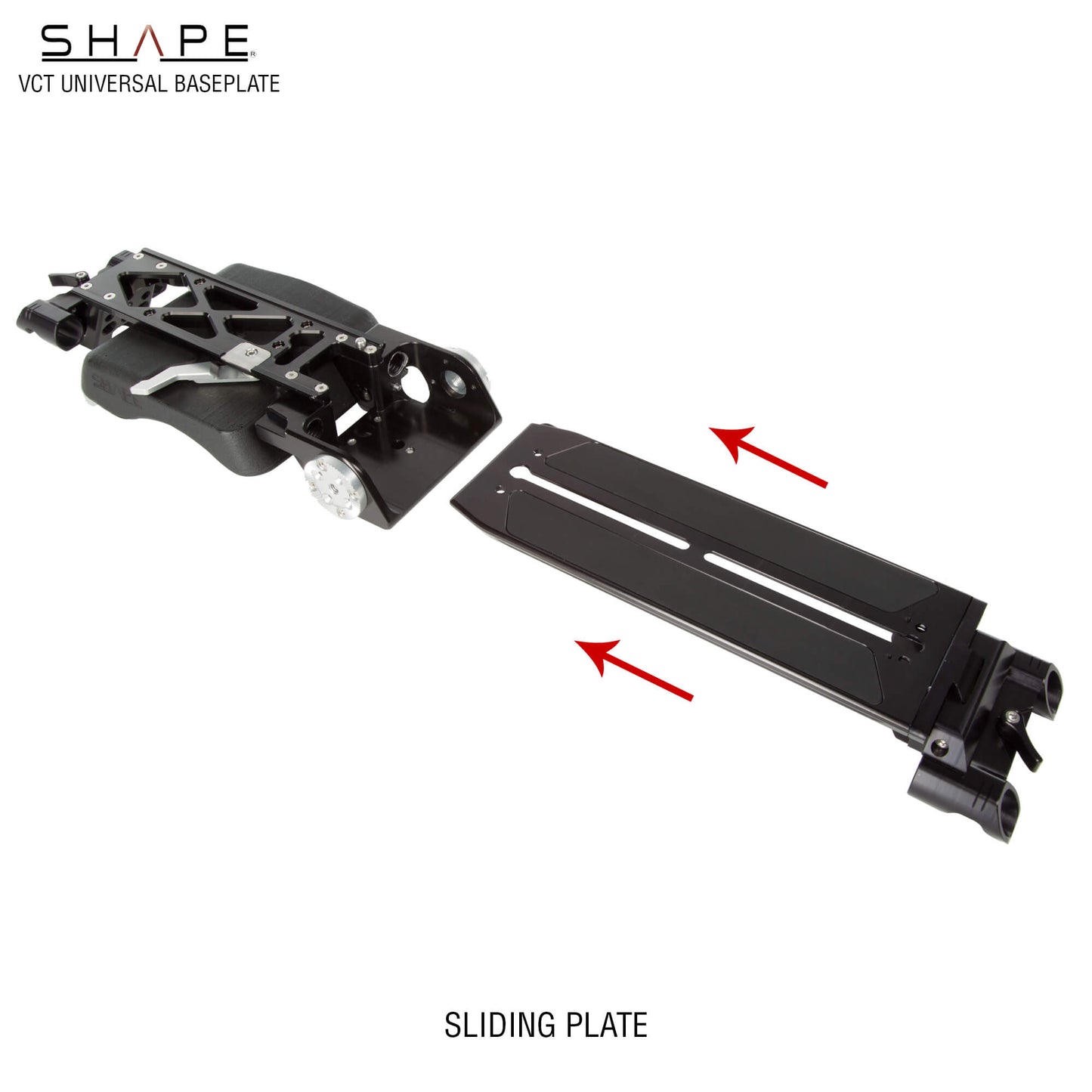

  • Front to back sliding plate for quick positioning of your camera accessories and an optimal adjustment of your camera’s weight distribution.

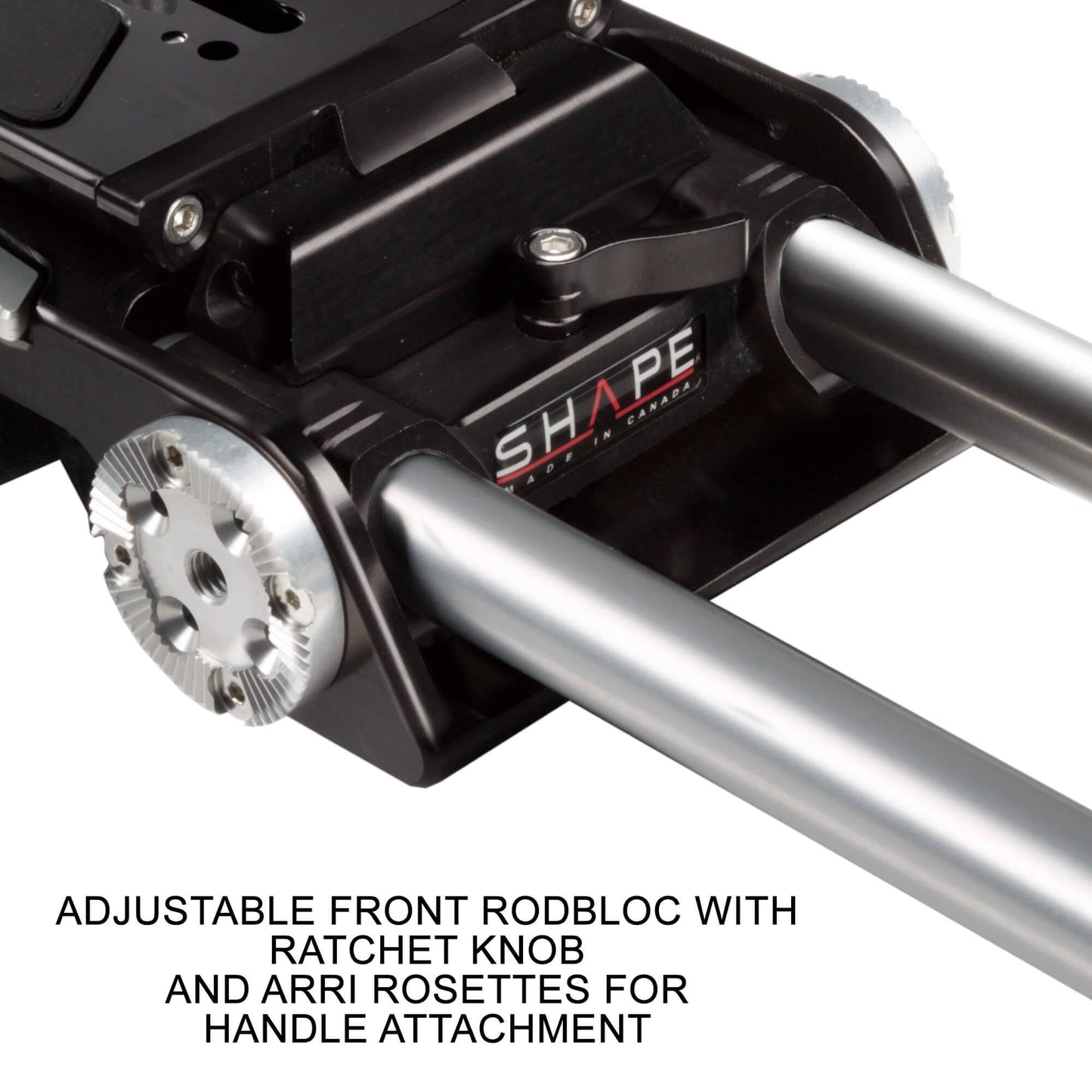

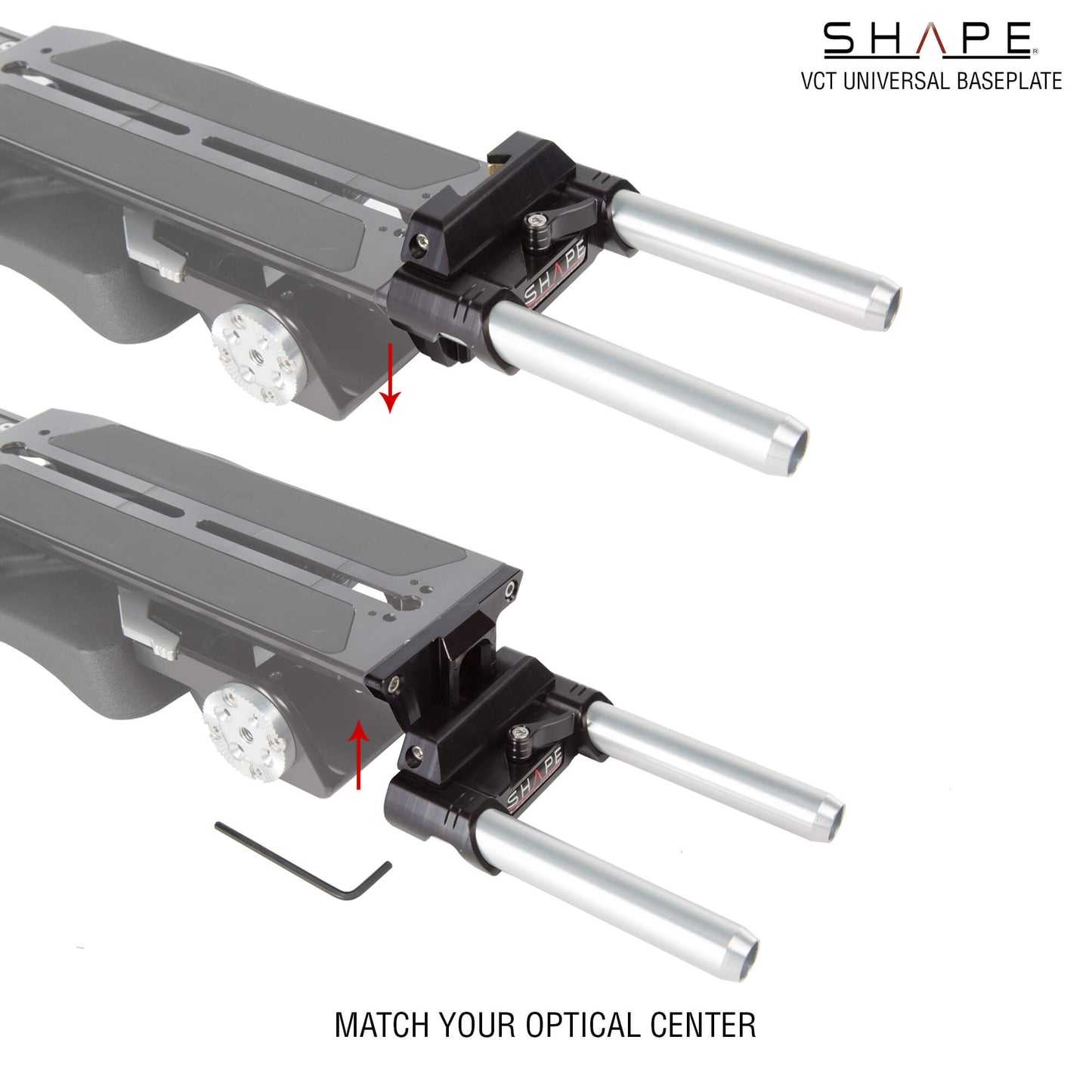

  • Match your camera’s optical center. Being able to adjust the height of your rod bloc to match your camera’s optical center is exactly what you can do.
  • Comfortable and moveable shoulder pad made of slip-free material and gel padding (BP-0100).

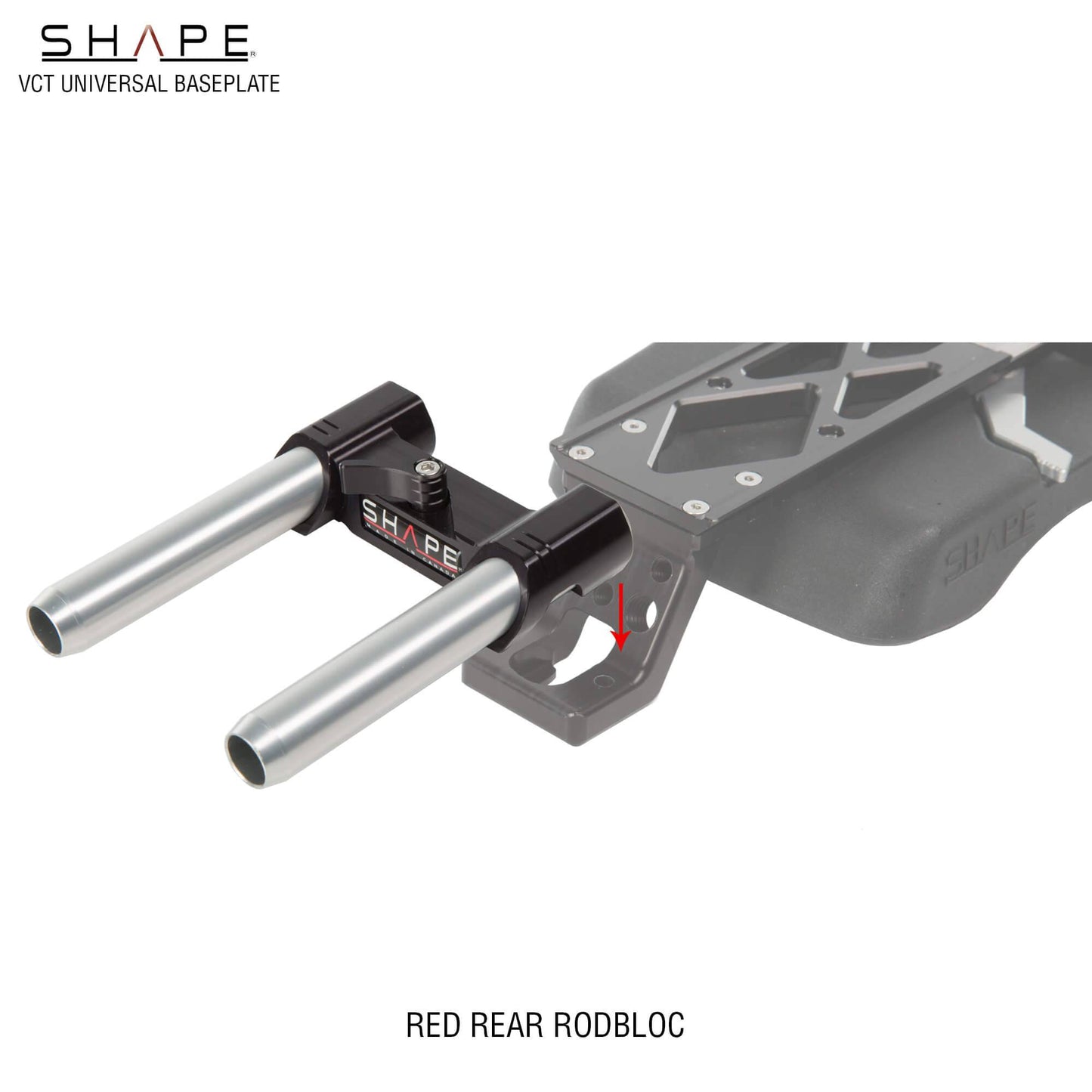

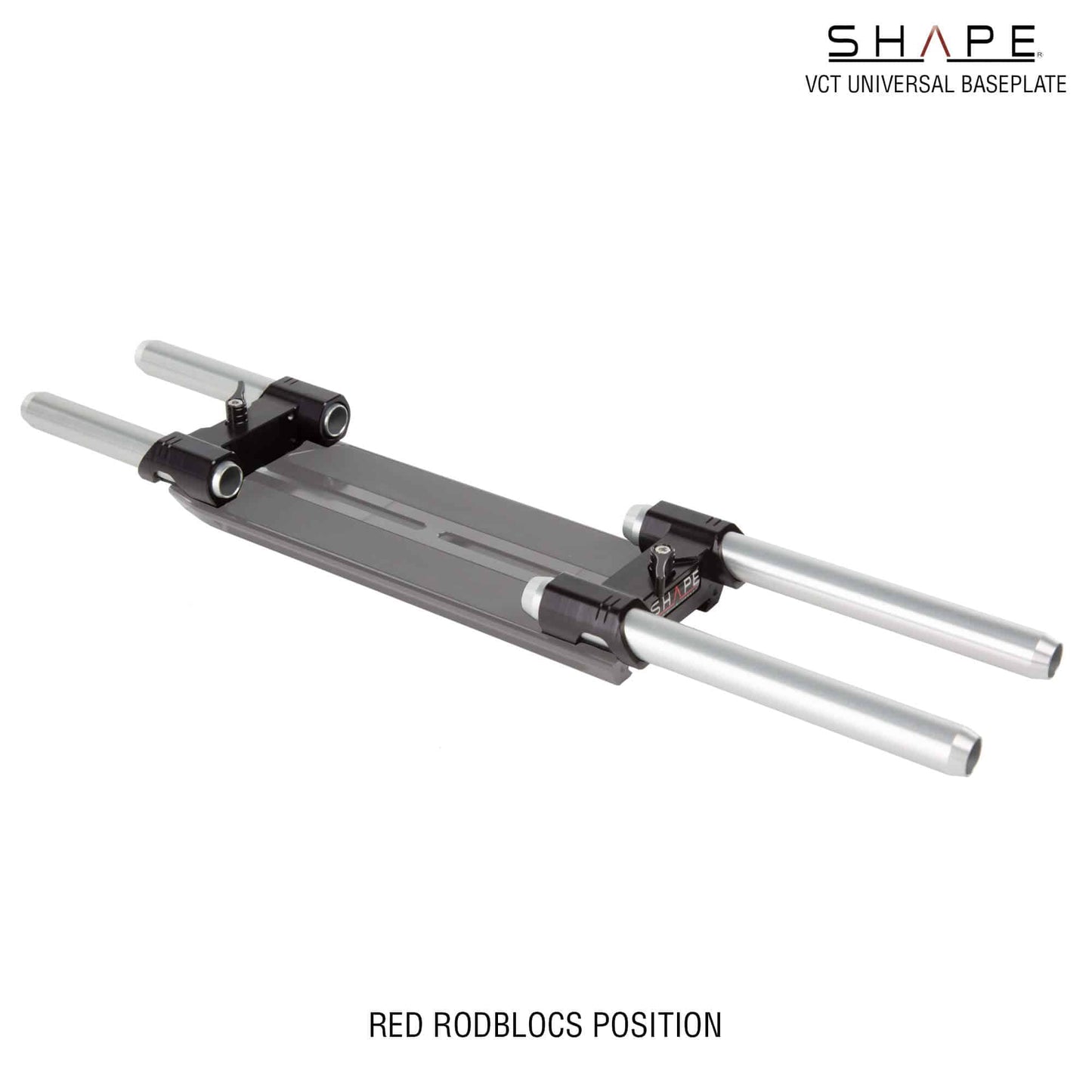

  • Front and rear 15 mm lightweight rod blocs with 2 pairs of 15 mm rods (8”, 4”) to mount more camera accessories.

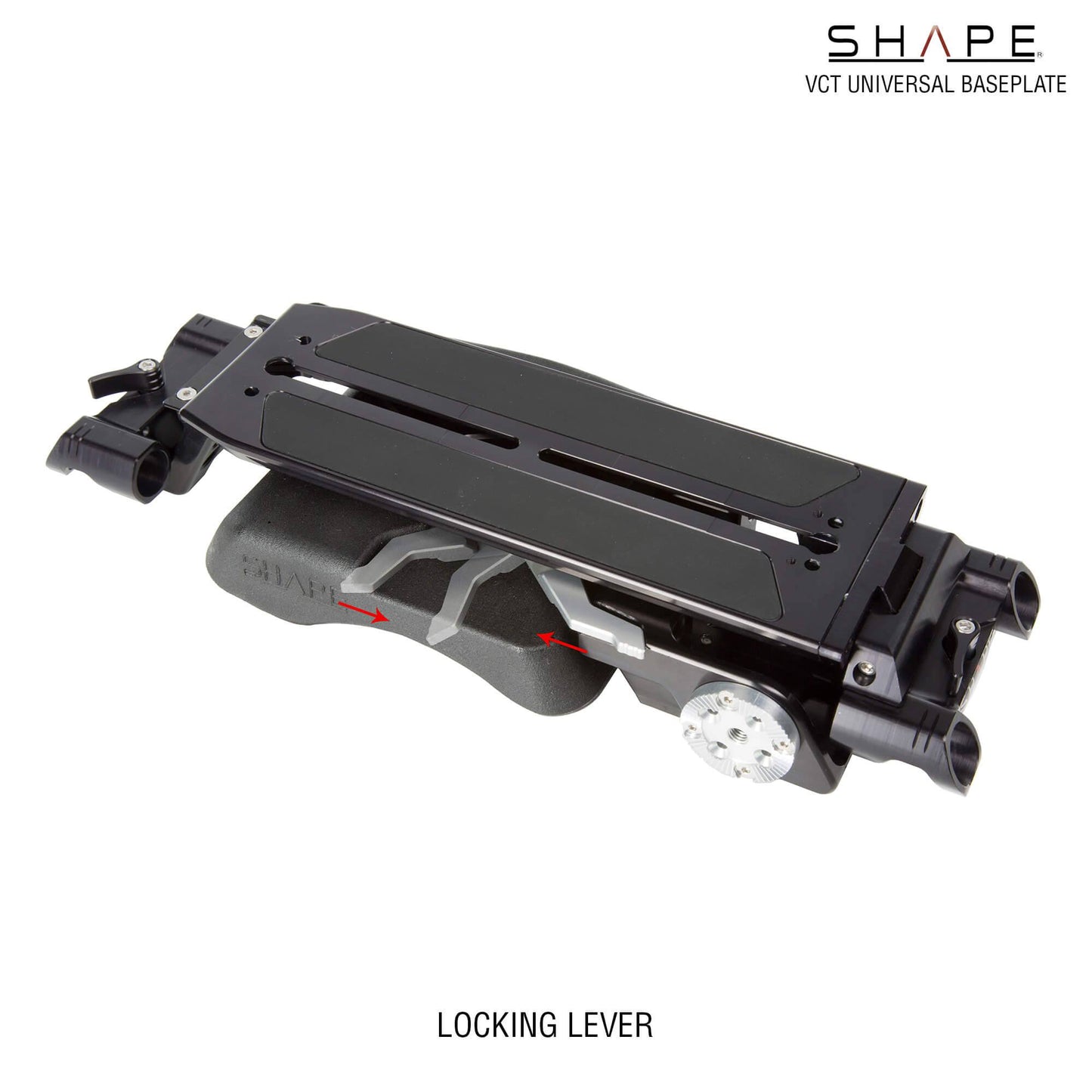

  • Safety pins prevents the upper plate from sliding.

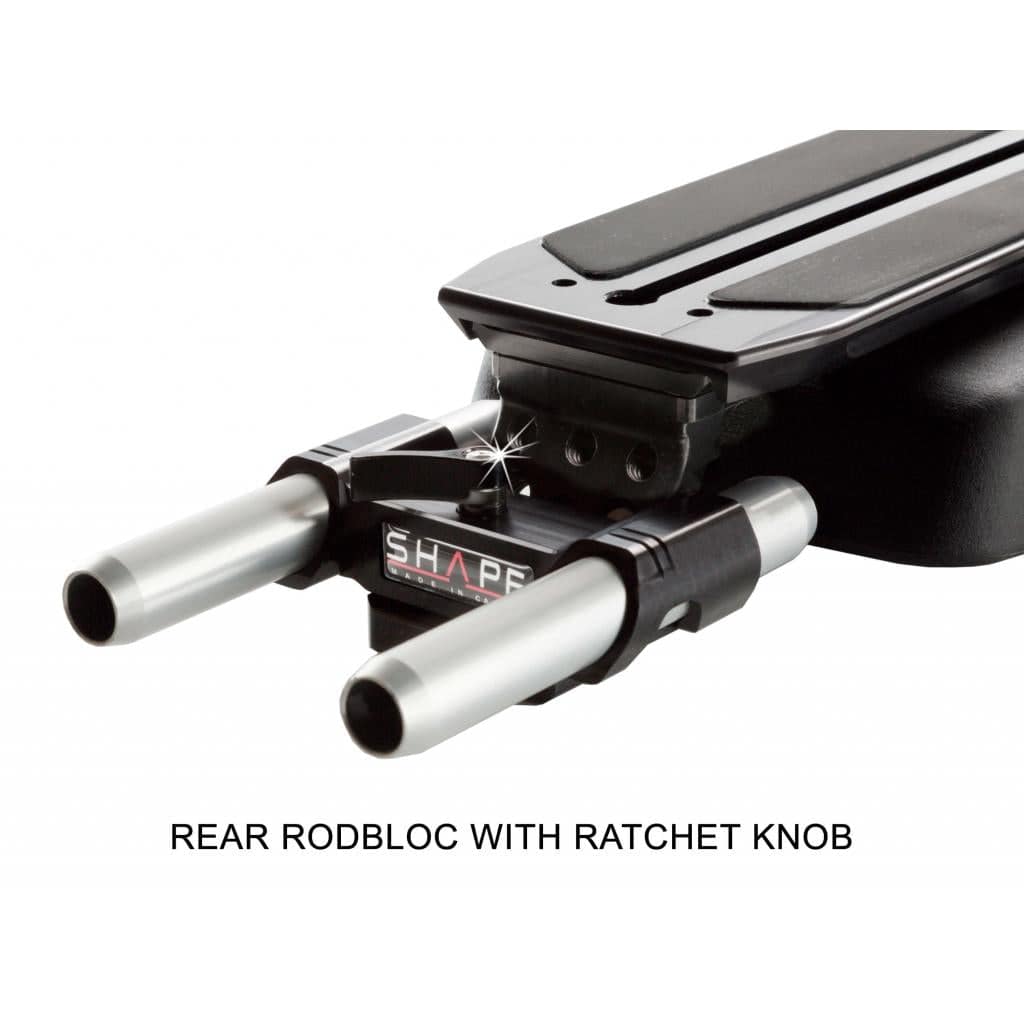

  • Ratchet knob applies an optimal pressure to the rods.
  • Sophisticated tool box to store your extra screws and Allen key

Compatible with the following cameras:

  • RED (DSMC2)
  • Arri (Amira and Alexa Mini)
  • Sony (Venice, FS7, FS7M2, F5, F55, EX1, EX3)
  • Canon (C200, C300, C300M2, C700)
  • Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2)
  • Blackmagic (Ursa Mini)
  • and many other camera models with interchangeable lenses

15 mm 4" rods (15TUBE4)

01 Shape 15tube4 Product Picture

This pair of SHAPE 15 mm Aluminum Rods (4″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.
The rods are each 15 mm in diameter, 4 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

15 mm 8" rods (15TUBE8)

01 Shape 15tube8 Product Picture

Pair of 15 mm rods 8″ long that fit studio and LWS 15 mm rod clamps, allowing you to use available rod mounted accessories. The rods are machined from hollow aluminum tubes and feature chamfered ends that make it easier to insert into 15 mm rod clamps, even if the rod isn’t perfectly aligned or is at a slight angle to the rod clamp.

What's in the box

  • (1) REVOLT VCT UNIVERSAL BASEPLATE WITH SHOULDER PAD
  • (1 pair) 15MM RODS 8″
  • (1 pair) 15MM RODS 4″

Additional information

Weight 3.00 lbs
Dimensions 14.00 × 5.00 × 4.00 in

Reviews

There are no reviews yet.

Be the first to review “Revolt BP10 – VCT universal baseplate”

Your email address will not be published. Required fields are marked *

Specifications

Weight:
2.60 lbs
1.18 kg
Dimensions:
10.50 x
4.25 x
2.00 in
26.67 x
10.80 x
05.08 cm
UPC:
629266006672
logo lifetime warranty

Lifetime Manufacturer's Warranty

All SHAPE products and accessories are covered by a manufacturer’s warranty solely on CNC machined parts.

All calls for service or repairs should be referred and sent directly to SHAPE. For an out-of-box failure, you may contact SHAPE by email at sales@shapewlb.com or call
1-888-968-9810 (Canada/U.S.) or 1-450-447-4444.

SHAPE® Brand Warranty

All SHAPE® brand products have a lifetime warranty unless otherwise stated. Please email us at sales@shapewlb.com or call
1-888-968-9810 (Canada/U.S.) or 1-450-447-4444 for repairs or exchanges on your SHAPE® brand products.
