NANLITE FC-500B LED Bi-color Spot Light

Nanlite FC500B Bi-Color LED Spotlight – Powerful, Versatile Lighting for Film & Photography

The Nanlite FC500B Bi-Color LED Spotlight is a professional-grade fixture engineered for filmmakers, photographers, and content creators who need both power and precision. With a CCT range of 2700K to 6500K, this bi-color LED offers full flexibility for matching ambient light or creating dramatic moods. Its wing-shaped housing design sets it apart from other Nanlite lights, while its compact yet robust AC-powered build makes it an excellent choice for studio and on-location work.

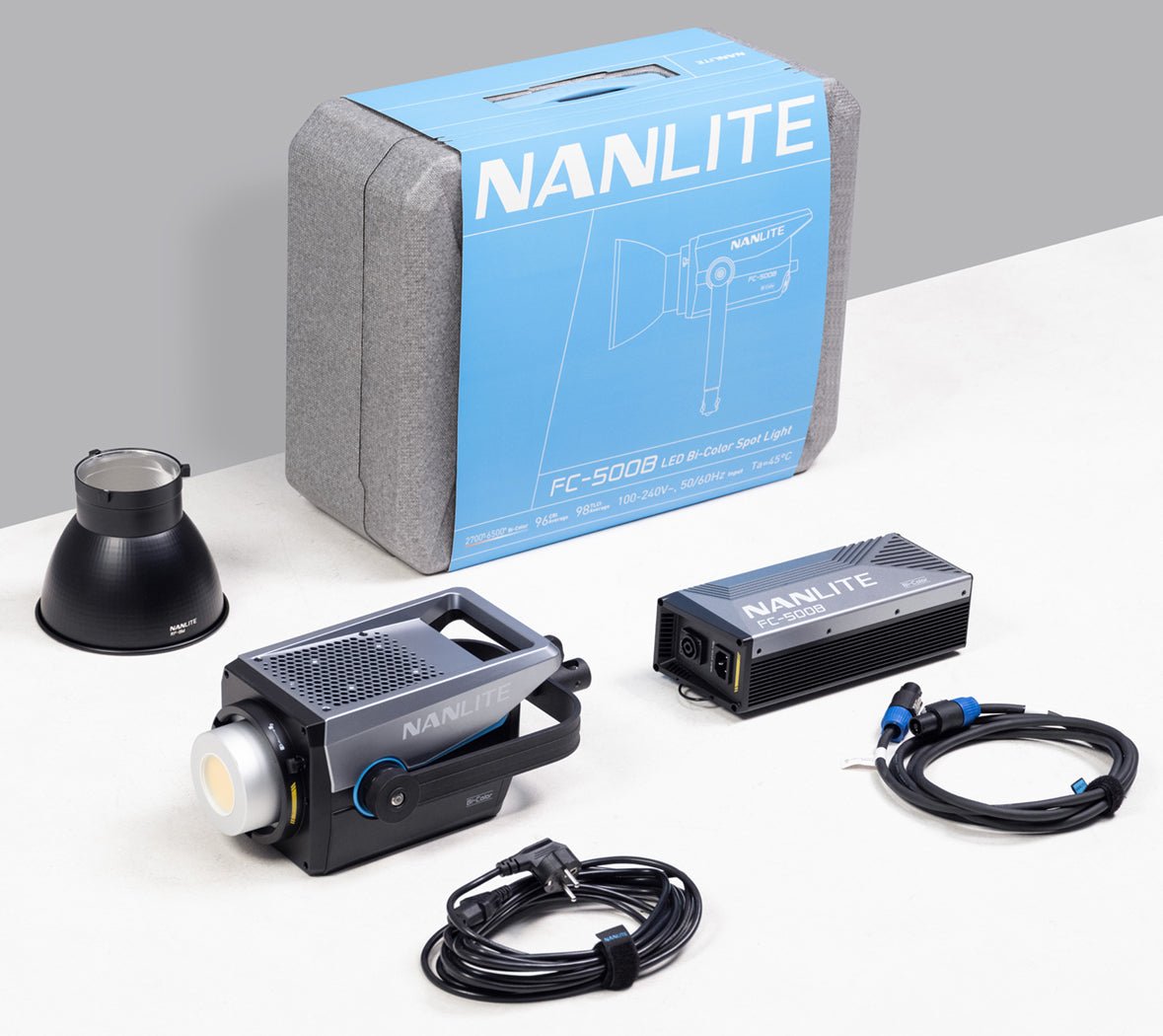

Delivering outstanding brightness and faithful color accuracy (CRI 96, TLCI 98), the FC500B ensures your images look natural and true-to-life. The separated light head and power supply design improves portability, while the included reflector and durable carry case add extended functionality and protection during transport.

Key Features & Performance

• Bi-Color Output: Wide 2700K–6500K range with high precision for any lighting setup.

• Advanced Dimming: Adjustable from 0.0% to 100% in 0.1% increments for smooth transitions.

• High Output: At 5600K, delivers an impressive 65,640 lux at 3.3 ft with the included reflector.

• Modes for Control: Maximum Output Mode for full brightness and Constant Output Mode for consistent intensity across the color temperature range.

Multiple Control Options

Adaptable to any workflow, the FC500B can be controlled in several ways:

• Onboard controls with intuitive knobs and a 2" display.

• Bluetooth & NANLINK app for full smartphone control.

• 2.4 GHz wireless via optional WS-TB-1 transmitter or WS-RC-C2 remote.

• DMX/RDM (locking metal 3.5mm port) for seamless integration into professional lighting networks.

Creative Lighting Effects

The FC500B includes 12 customizable built-in effects for cinematic versatility:

• CCT loop, INT loop, flash, pulse, storm, TV, paparazzi, candle/fire, bad bulb, fireworks, explosion, welding.
  These effects can be fine-tuned and stored as presets through the NANLINK app.

Quiet & Reliable Cooling

Smart fan modes allow you to prioritize cooling or silence depending on the environment:

• SMART, Full Speed, Low Speed, Pause, and Off options.
  Perfect for both quiet studio recording and intensive high-output use.

Mounting & Compatibility

• Bowens-style mount with umbrella holder for universal compatibility with light modifiers.

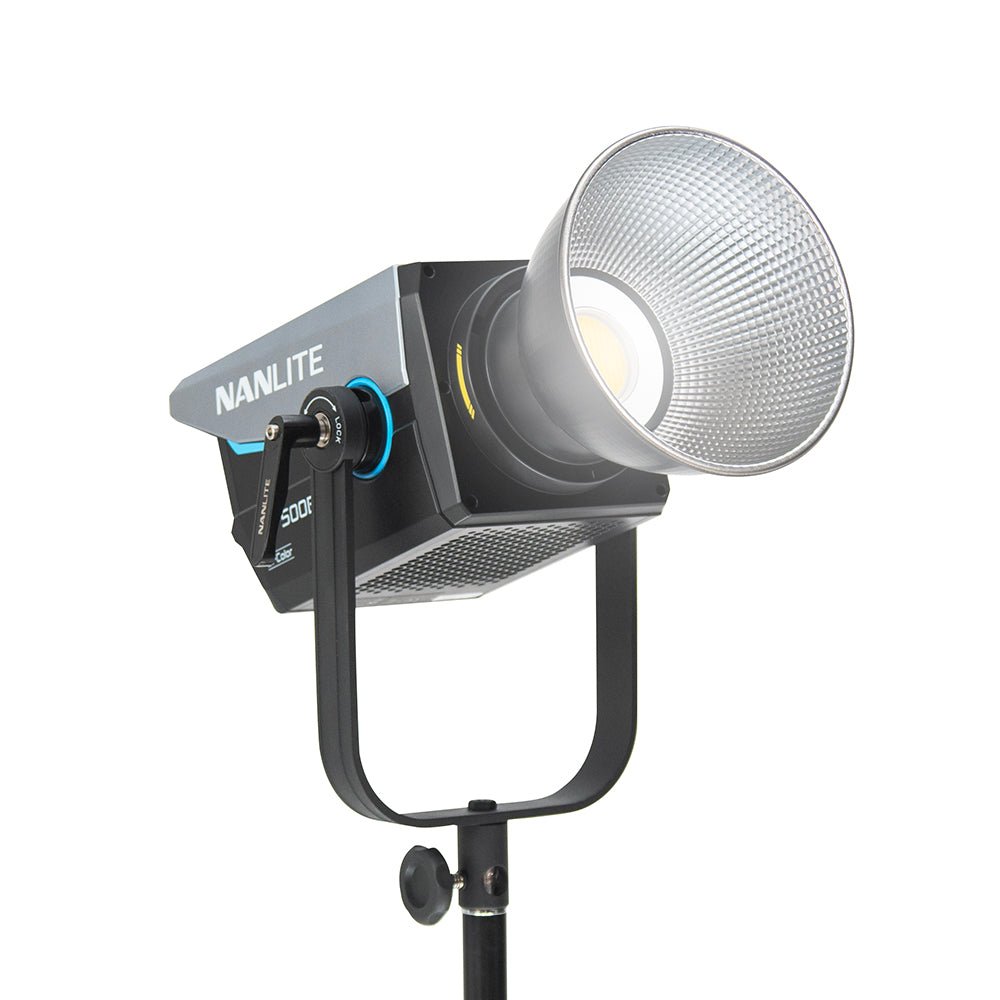

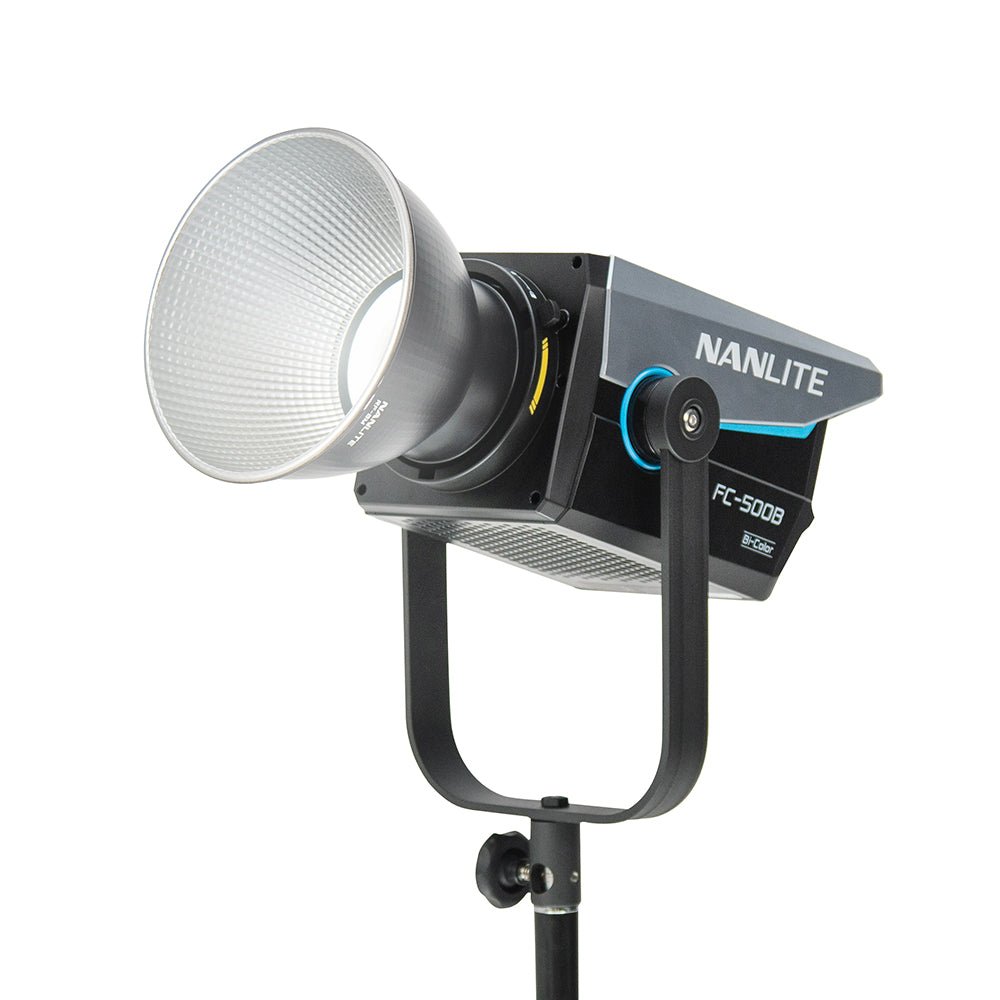

• Easy-mount yoke with 360° rotation and one-sided lock for fast positioning.

• 5/8" receiver fits industry-standard light stands.

Travel & Durability

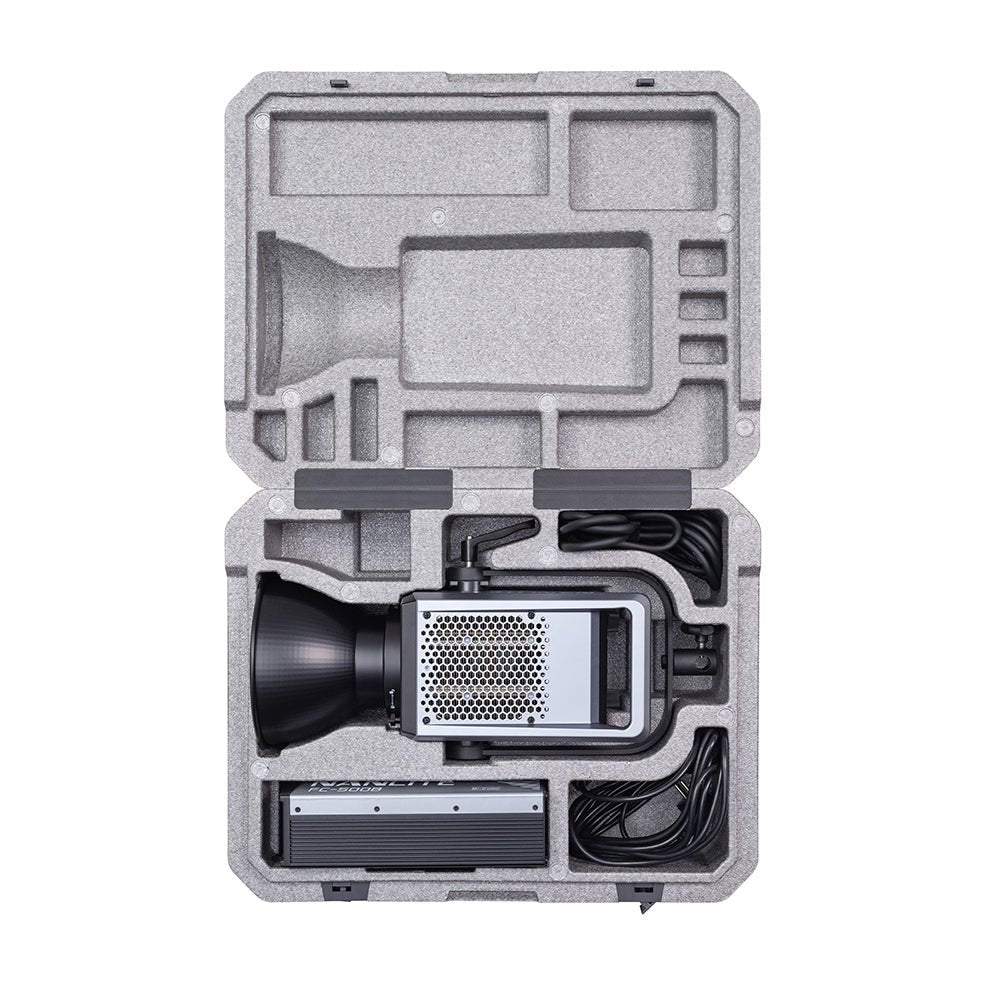

• Includes a corrosion-resistant, shock-protected carry case for safe transport.

• Power supply features a safety strap for convenient mounting on light stands.

Specifications

• Output: 520W unit

• Head Size: 14.69 x 9.7 x 5.87"

• Weight: 6.97 lb (light head)

• Power: AC operation (110–240 VAC)

• Firmware upgradable via USB
