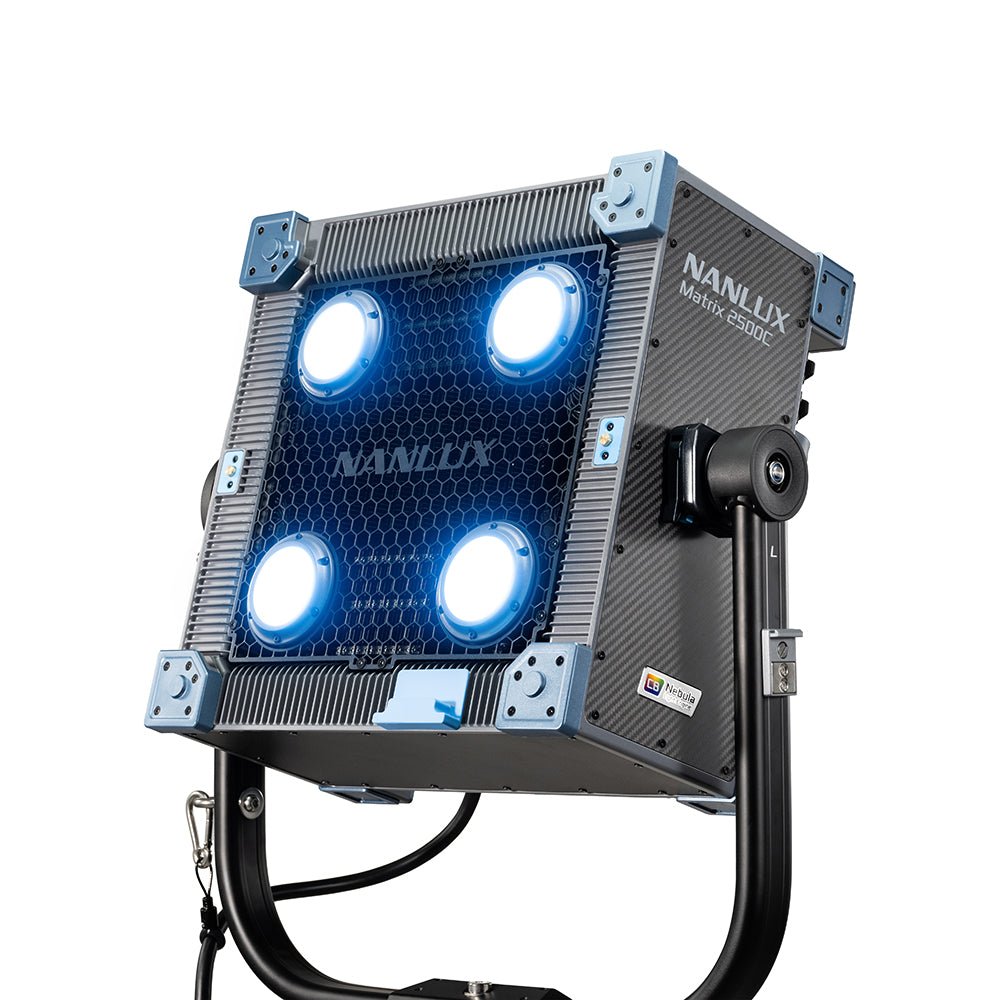

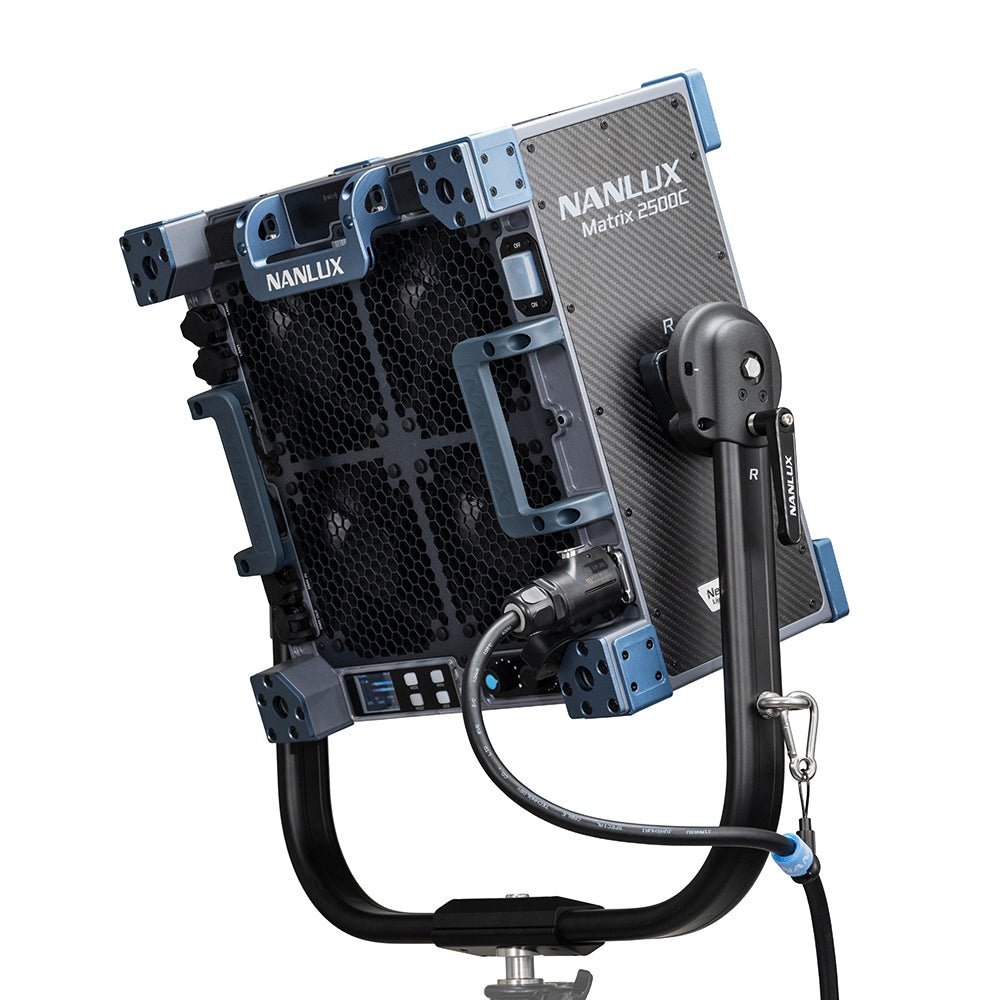

Nanlux Matrix 2500C LED Light Panel with Flight Case– 2500W High-Output IP66 Modular Lighting System for Film & Broadcast
The Nanlux Matrix 2500C LED fixture is a powerful 2500W multi-head lighting solution engineered for professional film, television, and virtual production environments. Designed with a four-head integrated structure, this advanced fixture delivers exceptional brightness, superior color accuracy, and seamless scalability—making them ideal for building high-performance modular lighting arrays.
With a rugged IP66 weather-resistant construction, this model is built to perform reliably in demanding indoor and outdoor shooting conditions. It's innovative all-in-one design combines the power supply and control unit into a compact housing, enabling faster setup and streamlined on-set workflows.
High-Output Performance & Sunlight Simulation
Optimized for high illuminance and natural daylight replication, the Matrix series produces impressive output levels:
-
Matrix 2500C: up to 67,900 lux
(measured at 3m, 5600K with FL-MT25 Motorized Fresnel at 16°)
When used in multi-unit configurations, this fixture creates a uniform beam spread with increased light density, making them perfect for studio lighting, large-scale productions, bounce lighting, and background illumination. Tight fixture spacing ensures consistent light continuity across arrays, delivering a clean, cinematic result.
Advanced Nebula Light Engine Technology
The Matrix 2500C features Nanlux’s proprietary Nebula Light Engine, delivering industry-leading color performance:
- Matrix 2500C (Nebula C8 Full-Color Engine):
- Ultra-wide CCT range: 1000K–20,000K
- ±200 green/magenta tuning
- Expanded color gamut with enhanced saturation and skin tone accuracy
The Matrix 2500C supports multiple advanced color modes including HSI, RGBW, XY, Gel, and Effects, while both fixtures maintain outstanding CRI/TLCI ratings of 98 for true-to-life color reproduction
Precision Dimming & Professional Control Options
Achieve flawless lighting transitions with 0.1% ultra-fine dimming control, ensuring smooth and flicker-free output from 0 to 100%.
Designed for modern production workflows, the Matrix series supports a wide range of wired and wireless control systems, including:
- DMX/RDM
- LumenRadio CRMX
- Art-Net / sACN
- NANLINK App 2.0
- Remote and wired controllers
The built-in NFC functionality allows rapid batch configuration of DMX settings, saving time when managing large lighting setups. For advanced applications such as virtual production, each light head can be individually controlled, enabling real-time lighting adjustments synchronized with on-screen content.
Modular Array System & Scalable Lighting Design
The Matrix 2500 series is purpose-built for multi-light array configurations. Using the optional four-light frame, users can combine fixtures into a 10,000W lighting system with simplified rigging and cabling.
- Integrated 4-way power distribution cable powers all units simultaneously
- EXT port connectivity enables synchronized control across fixtures
- Compatible with truss-mounted setups for large-scale lighting grids
The precise alignment of internal and external lamp spacing ensures a continuous, even beam output, even in complex multi-unit arrays.
Durable Build & Intelligent Cooling System

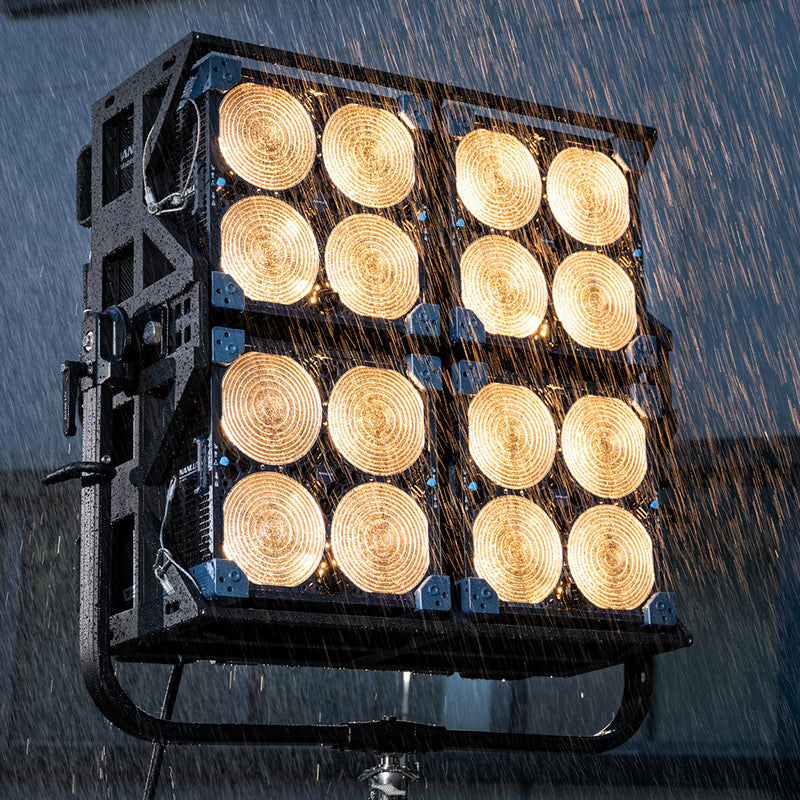

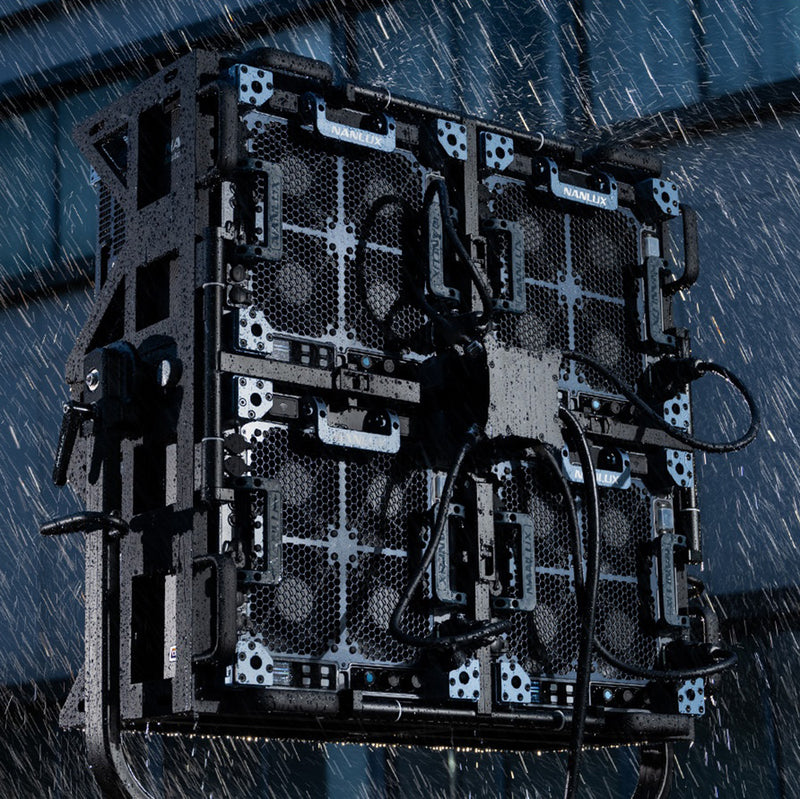

Constructed from a lightweight magnesium alloy chassis, these fixtures offer durability without added bulk. The IP66 rating ensures protection against dust and heavy rain, making them suitable for extended outdoor shoots.
A front-to-rear airflow cooling system minimizes heat buildup in dense lighting arrays, maintaining consistent performance during prolonged high-output operation. Users can select from four fan modes, including a Smart mode that automatically adjusts fan speed based on ambient temperature—ideal for noise-sensitive filming environments.
Professional Accessories & Motorized Light Shaping
The Matrix series introduces a next-generation accessory mount with electronic contacts for intelligent modifier recognition and automatic color calibration.

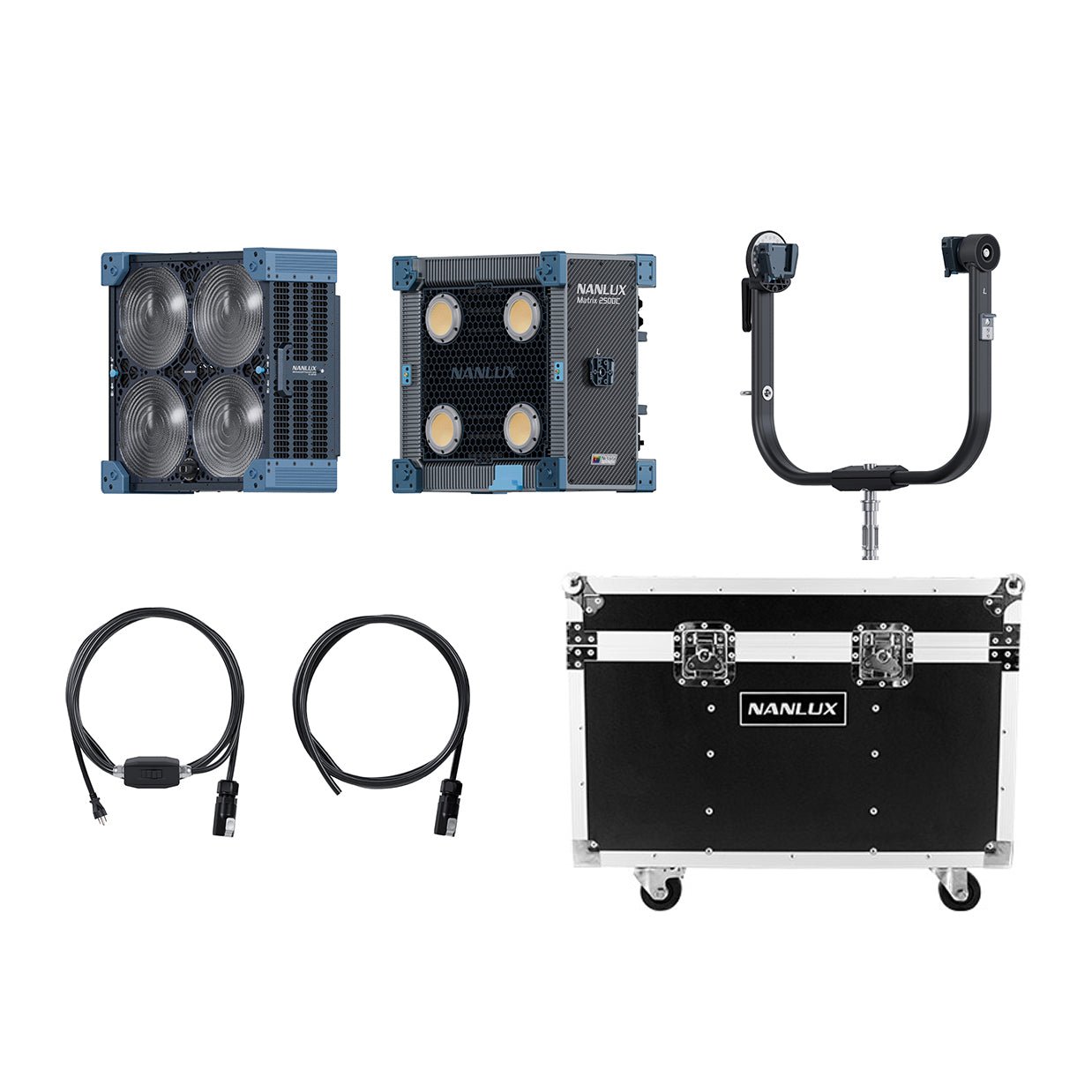

Included with the system, the FL-MT25 Motorized Fresnel Lens offers:
- Adjustable beam angle from 16° to 48°
- Remote zoom control across multiple fixtures
- IP66-rated durability for outdoor use
Optional accessories such as the Dual-Head Yoke and Four-Light Frame provide flexible rigging solutions for both compact and large-scale lighting setups.
